PBAM3AFB002E0B APEM Blue LED 24VDC Momentary NO 30mm Piezo Switch Prewired IP68
by APEM
SKU 490100
MPN: PBAM3AFB002E0B
Availability:
21 in stock
Original price
£79.22
-
Original price
£79.22
Original price
£79.22
£79.22
-
£79.22
Current price
£79.22

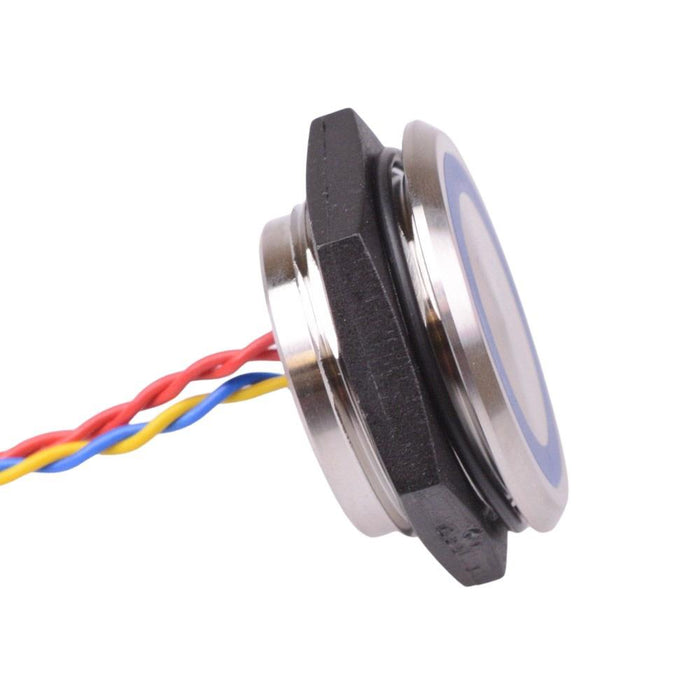

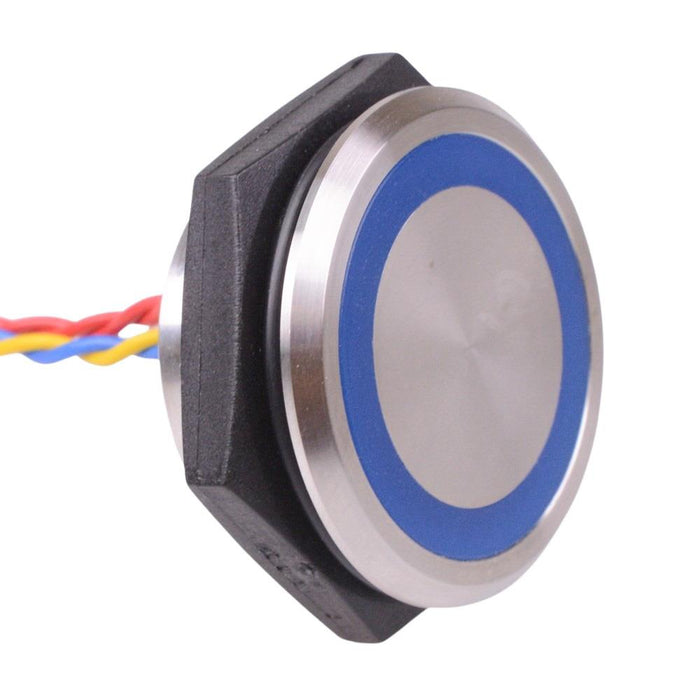

The PBAM3AFB002E0B is an illuminated 30mm momentary piezo switch manufactured by APEM featuring a large actuation surface. The switch features a stainless steel body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.
Body material: stainless steel 316L illumination: 24VDC blue ring Panel cut-out: 30.5mm Contacts: SPST-NO Protection rating: IP68, IP69K mounted on panel Rating: 1A 24VAC/DC Terminals: flying leads Operator: flush, 2.5mm height Dimensions: 36 x 16.5mm (diameter x height)
Specification
| Actuation | Momentary |
| Colour | Blue |
| Contact Configuration | SPST |
| Contact Rating | 1A 24VAC/DC |
| Current Rating | 1A |
| Electrical Life | 50,000,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Blue |
| Illumination Voltage | 24VDC |
| Material | Stainless Steel |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +75°C |
| Panel Cut Out | 30.5mm |
| Product Series | PBA |
| Protection Level | IP68 |
| Switch Operation | Off-(On) |
| Terminal Type | Flying Leads |
| Voltage Rating | 24VAC/DC |
