PBAR11F2000 APEM Latching 16mm Black Piezo Switch Prewired IP68 SPST

by APEM
SKU 487683

MPN: PBAR11F2000

Availability:
8 in stock
Original price £33.43 - Original price £33.43
Original price
£33.43 Inc VAT
£33.43 - £33.43
Current price £33.43 Inc VAT

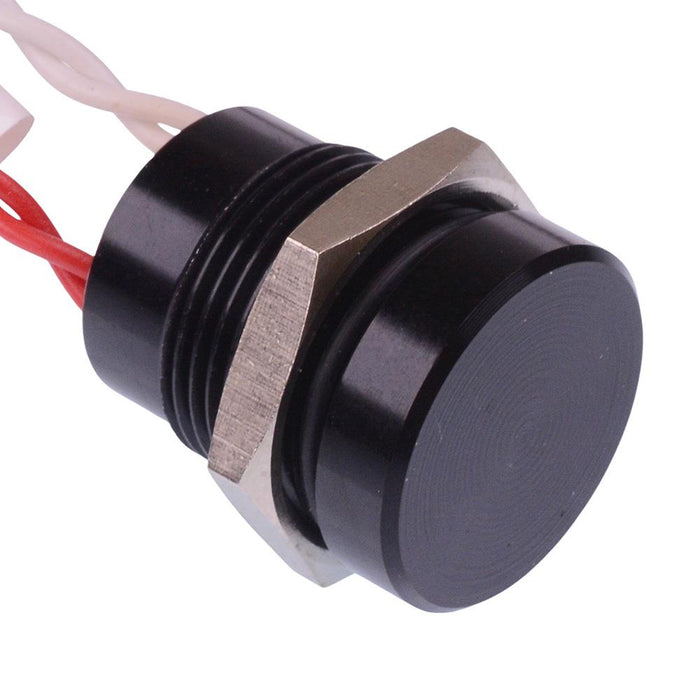

The PBAR11F2000 is a 16mm latching piezo switch manufactured by APEM. The switch features a black anodized body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.

  • Body material: anodized
  • Body colour: black
  • Panel cut-out: 16mm
  • Contacts: SPST-NO
  • Protection rating: IP68, IP69K mounted on panel
  • Rating: 200mA 24VAC/DC
  • Terminals: flying leads
  • Bushing: flat operator, 4.5mm height
  • Diameter: 18mm
  • Specification
    Actuation Latching
    Back Order Lead Time 10 Days
    Contact Configuration SPST
    Contact Rating 0.2A 24VAC/DC
    Current Rating 0.2A
    Electrical Life 50,000,000 Cycles
    Illuminated No
    Illumination Colour Non Illuminated
    Material Anodized
    Mounting Style Panel
    Number of Positions 2
    Operating Temperature -40°C to +75°C
    Panel Cut Out 16mm
    Product Series PBA
    Protection Level IP68
    Switch Operation On-Off
    Terminal Type Flying Leads
    Voltage Rating 24VAC/DC
