PBAR1AF0000A0Y APEM Yellow illuminated 5VDC Momentary NO 16mm Piezo Switch Prewired IP68
by APEM
SKU 487641
MPN: PBAR1AF0000A0Y
Availability:
12 in stock
Original price
£25.10
-
Original price
£25.10
Original price
£25.10
£25.10
-
£25.10
Current price
£25.10

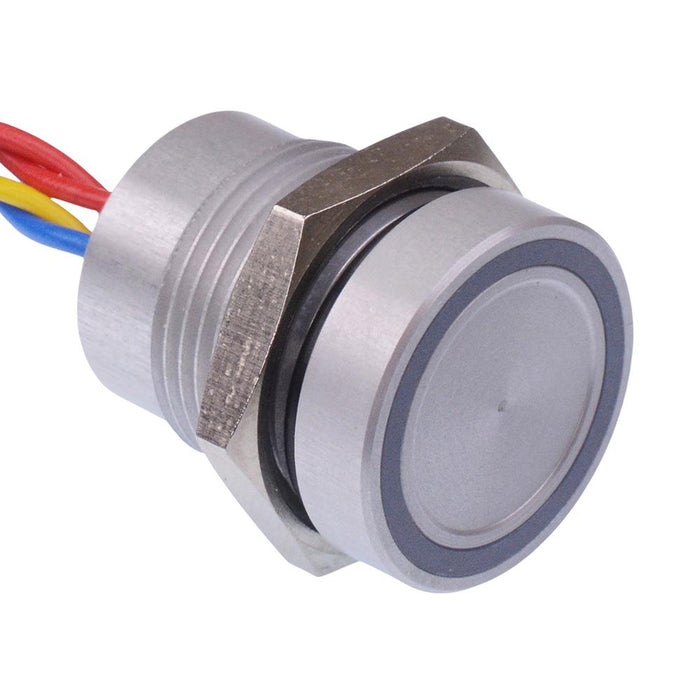

The PBAR1AF0000A0Y is an illuminated 16mm momentary piezo switch manufactured by APEM. The switch features a natural anodized body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.
Body material: natural anodized Body colour: silver LED colour: yellow illumination: ring, 5VDC Panel cut-out: 16mm Contacts: SPST-NO Protection rating: IP68, IP69K mounted on panel Rating: 200mA 24VAC/DC Terminals: flying leads Bushing: flat operator, 4.5mm height Diameter: 18mm
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Colour | Yellow |
| Contact Configuration | SPST |
| Contact Rating | 0.2A 24VAC/DC |
| Current Rating | 0.2A |
| Electrical Life | 50,000,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Yellow |
| Illumination Voltage | 5VDC |
| Material | Anodized |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +75°C |
| Panel Cut Out | 16mm |
| Product Series | PBA |
| Protection Level | IP68 |
| Switch Operation | Off-(On) |
| Terminal Type | Flying Leads |
| Voltage Rating | 24VAC/DC |
