PBAR1AF3000A0G APEM Green illuminated 5VDC Momentary NO 16mm Piezo Switch Prewired IP68

by APEM
SKU 487653

MPN: PBAR1AF3000A0G

Availability:
10 in stock
Original price £29.57 - Original price £29.57
Original price
£29.57
£29.57 - £29.57
Current price £29.57

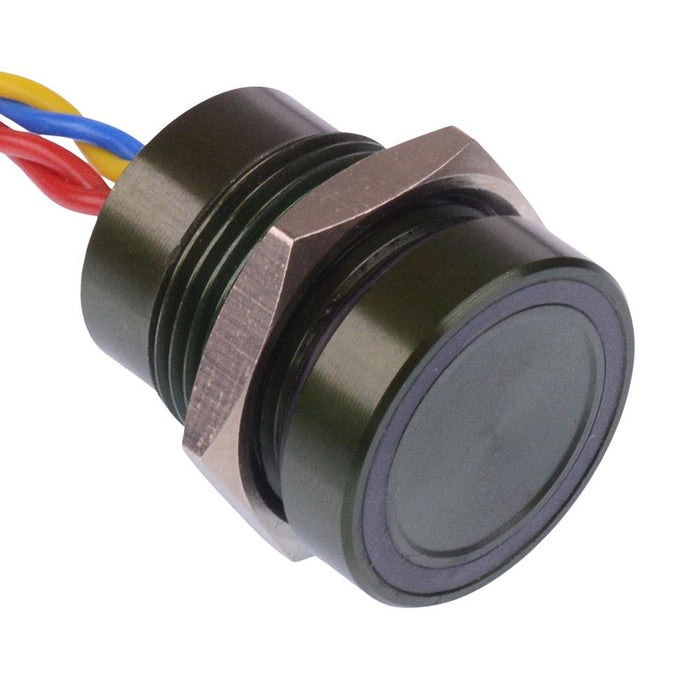

The PBAR1AF3000A0G is an illuminated 16mm momentary piezo switch manufactured by APEM. The switch features a green anodized body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.

  • Body material: green anodized
  • Body colour: green
  • LED colour: green
  • illumination: ring, 5VDC
  • Panel cut-out: 16mm
  • Contacts: SPST-NO
  • Protection rating: IP68, IP69K mounted on panel
  • Rating: 200mA 24VAC/DC
  • Terminals: flying leads
  • Bushing: flat operator, 4.5mm height
  • Diameter: 18mm
  • Specification
    Actuation Momentary
    Back Order Lead Time 10 Days
    Colour Green
    Contact Configuration SPST
    Contact Rating 0.2A 24VAC/DC
    Current Rating 0.2A
    Electrical Life 50,000,000 Cycles
    Illuminated Yes
    Illumination Colour Green
    Illumination Voltage 5VDC
    Material Anodized
    Mounting Style Panel
    Number of Positions 2
    Operating Temperature -40°C to +75°C
    Panel Cut Out 16mm
    Product Series PBA
    Protection Level IP68
    Switch Operation Off-(On)
    Terminal Type Flying Leads
    Voltage Rating 24VAC/DC
