PBAR21FB000 APEM Latching 22mm Stainless Steel Piezo Switch Prewired IP68 SPST
by APEM
SKU 487378
MPN: PBAR21FB000
Availability:
Only 1 left!
Original price
£45.91
-
Original price
£45.91
Original price
£45.91
£45.91
£45.91
-
£45.91
Current price
£45.91

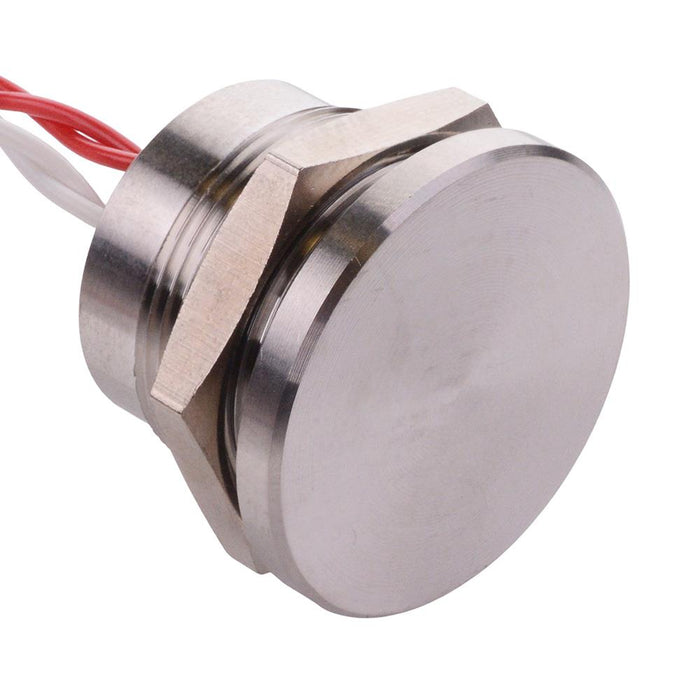

The PBAR21FB000 is a 22mm latching piezo switch manufactured by APEM. The switch features a stainless steel body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.
Body material: stainless steel 316L Body colour: silver Panel cut-out: 22mm Contacts: SPST-NO Protection rating: IP68, IP69K mounted on panel Rating: 200mA 24VAC/DC Terminals: flying leads Bushing: flat operator, 3mm height Diameter: 28mm
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPST |
| Contact Rating | 0.2A 24VAC/DC |
| Current Rating | 0.2A |
| Electrical Life | 50,000,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Material | Stainless Steel |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +75°C |
| Panel Cut Out | 22mm |
| Product Series | PBA |
| Protection Level | IP68 |
| Switch Operation | On-Off |
| Terminal Type | Flying Leads |
| Voltage Rating | 24VAC/DC |
