PBAR2AF0000L0Y APEM Yellow illuminated 5VDC Momentary NO 22mm Piezo Switch Prewired IP68

SKU 487593


10 in stock
Original price £34.47 - Original price £34.47
Original price
£34.47 Inc VAT
£34.47 - £34.47
Current price £34.47 Inc VAT

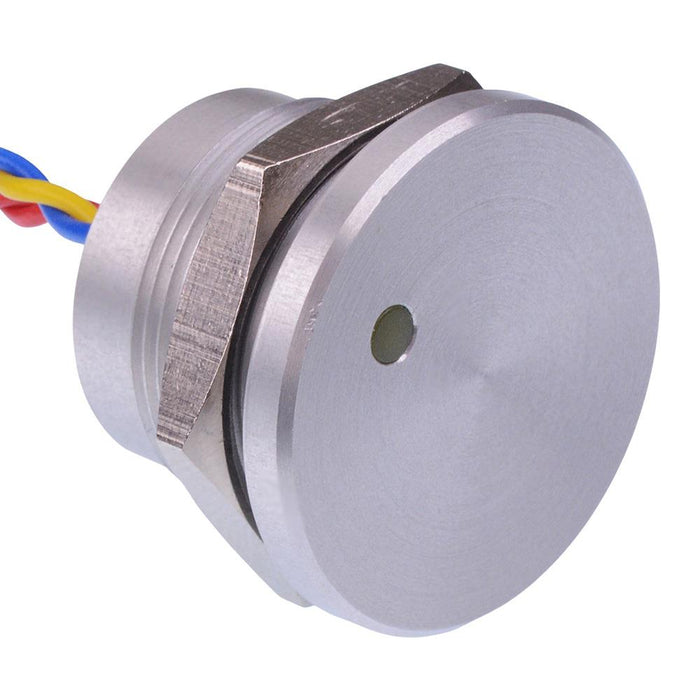

The PBAR2AF0000L0Y is an illuminated 22mm momentary piezo switch manufactured by APEM. The switch features a natural anodized body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.

  • Body material: natural anodized
  • Body colour: silver
  • LED colour: yellow
  • illumination: dot, 5VDC
  • Panel cut-out: 22mm
  • Contacts: SPST-NO
  • Protection rating: IP68, IP69K mounted on panel
  • Rating: 200mA 24VAC/DC
  • Terminals: flying leads
  • Bushing: flat operator, 3mm height
  • Diameter: 28mm
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Colour Yellow
    Contact configuration SPST
    Contact rating 0.2A 24VAC/DC
    Current rating 0.2A
    Electrical life 50,000,000 Cycles
    Illuminated Yes
    Illumination colour Yellow
    Illumination voltage 5VDC
    Material Anodized
    Mounting style Panel
    Number of positions 2
    Operating temperature -40°C to +75°C
    Panel cut out 22mm
    Product series PBA
    Protection level IP68
    Switch operation Off-(On)
    Terminal type Flying Leads
    Voltage rating 24VAC/DC
