PBAR2AFB000L0W APEM White illuminated 5VDC Momentary NO 22mm Piezo Switch Prewired IP68
by APEM
SKU 487398
MPN: PBAR2AFB000L0W
Availability:
18 in stock
Original price
£37.10
-
Original price
£37.10
Original price
£37.10
£37.10
-
£37.10
Current price
£37.10

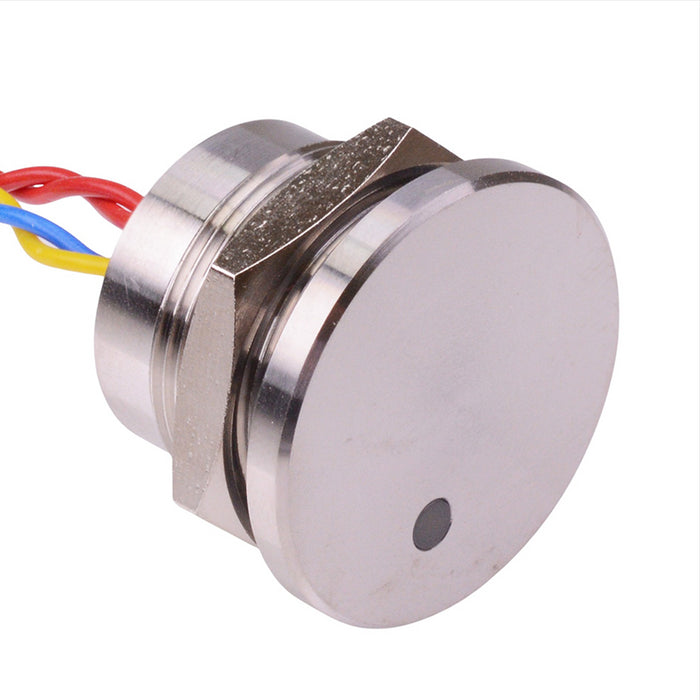

The PBAR2AFB000L0W is an illuminated 22mm momentary piezo switch manufactured by APEM. The switch features a stainless steel body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.
Body material: stainless steel 316L Body colour: silver LED colour: white illumination: dot, 5VDC Panel cut-out: 22mm Contacts: SPST-NO Protection rating: IP68, IP69K mounted on panel Rating: 200mA 24VAC/DC Terminals: flying leads Bushing: flat operator, 3mm height Diameter: 28mm
Specification
Actuation | Momentary |
Back Order Lead Time | 10 Days |
Colour | White |
Contact Configuration | SPST |
Contact Rating | 0.2A 24VAC/DC |
Current Rating | 0.2A |
Electrical Life | 50,000,000 Cycles |
Illuminated | Yes |
Illumination Colour | White |
Illumination Voltage | 5VDC |
Material | Stainless Steel |
Mounting Style | Panel |
Number of Positions | 2 |
Operating Temperature | -40°C to +75°C |
Panel Cut Out | 22mm |
Product Series | PBA |
Protection Level | IP68 |
Switch Operation | Off-(On) |
Terminal Type | Flying Leads |
Voltage Rating | 24VAC/DC |
