PBAR91F5000A2A APEM Red/Green illuminated 5VDC Latching 19mm Piezo Switch Prewired IP68

by APEM
SKU 487550

MPN: PBAR91F5000A2A

Availability:
14 in stock
Original price £28.60 - Original price £28.60
Original price
£28.60
£28.60 - £28.60
Current price £28.60

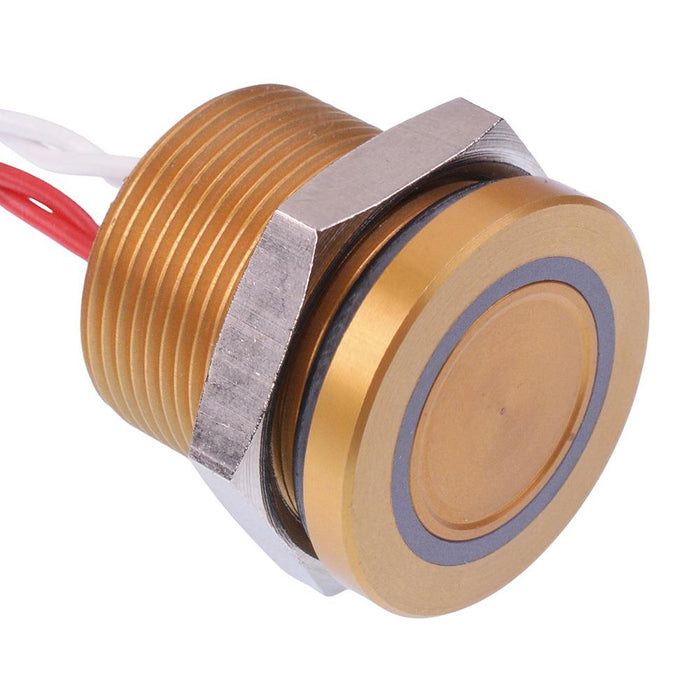

The PBAR91F5000A2A is an illuminated 19mm latching piezo switch manufactured by APEM. The switch features a gold anodized body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.

  • Body material: gold anodized
  • Body colour: gold
  • LED colour: red/green
  • illumination: ring, 5VDC
  • Panel cut-out: 19mm
  • Contacts: SPST
  • Protection rating: IP68, IP69K mounted on panel
  • Rating: 200mA 24VAC/DC
  • Terminals: flying leads
  • Bushing: flat operator, 3mm height,
  • Diameter: 22mm
  • Specification
    Actuation Latching
    Back Order Lead Time 10 Days
    Colour Red/Green
    Contact Configuration SPST
    Contact Rating 0.2A 24VAC/DC
    Current Rating 0.2A
    Electrical Life 50,000,000 Cycles
    Illuminated Yes
    Illumination Colour Red/Green
    Illumination Voltage 5VDC
    Material Anodized
    Mounting Style Panel
    Number of Positions 2
    Operating Temperature -40°C to +75°C
    Panel Cut Out 19mm
    Product Series PBA
    Protection Level IP68
    Switch Operation On-Off
    Terminal Type Flying Leads
    Voltage Rating 24VAC/DC
