PBAR91F5000W2A APEM Red/Green illuminated Latching 19mm Piezo Switch Prewired IP68
by APEM
SKU 487345
MPN: PBAR91F5000W2A
Availability:
19 in stock
Original price
£49.81
-
Original price
£49.81
Original price
£49.81
£49.81
-
£49.81
Current price
£49.81

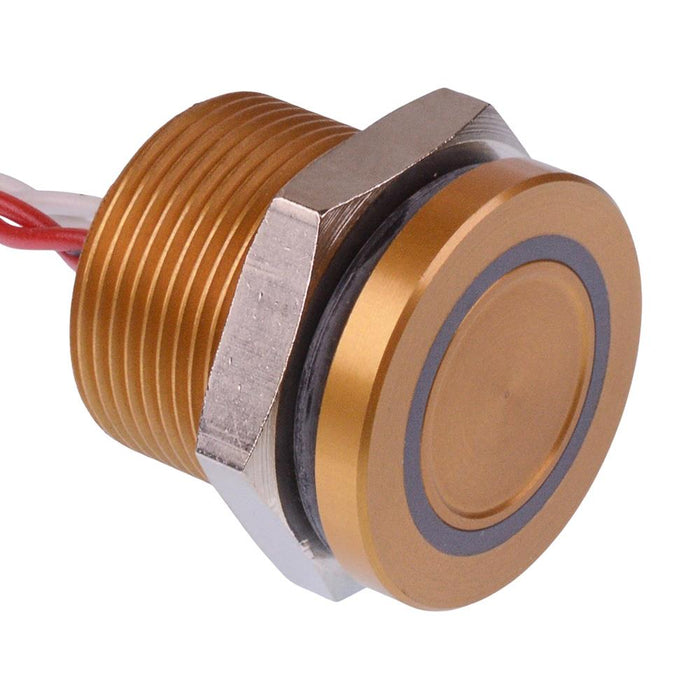

The PBAR91F5000W2A is an illuminated 19mm latching piezo switch manufactured by APEM. The switch features a gold anodized body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.
Body material: gold anodized Body colour: gold LED colour: red/green illumination: ring, microcontroller driven Panel cut-out: 19mm Contacts: SPST Protection rating: IP68, IP69K mounted on panel Rating: 200mA 24VAC/DC Terminals: flying leads Bushing: flat operator, 3mm height, Diameter: 22mm
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Colour | Red/Green |
| Contact Configuration | SPST |
| Contact Rating | 0.2A 24VAC/DC |
| Current Rating | 0.2A |
| Electrical Life | 50,000,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Red/Green |
| Illumination Voltage | Microcontroller |
| Material | Anodized |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +75°C |
| Panel Cut Out | 19mm |
| Product Series | PBA |
| Protection Level | IP68 |
| Switch Operation | On-Off |
| Terminal Type | Flying Leads |
| Voltage Rating | 24VAC/DC |
