PBAR9AF6000A0S APEM Red illuminated 5VDC Momentary NO 19mm Piezo Switch Prewired IP68

by APEM
SKU 487893

MPN: PBAR9AF6000A0S

Availability:
Only 5 left!
Original price £32.55 - Original price £32.55
Original price
£32.55
£32.55 - £32.55
Current price £32.55

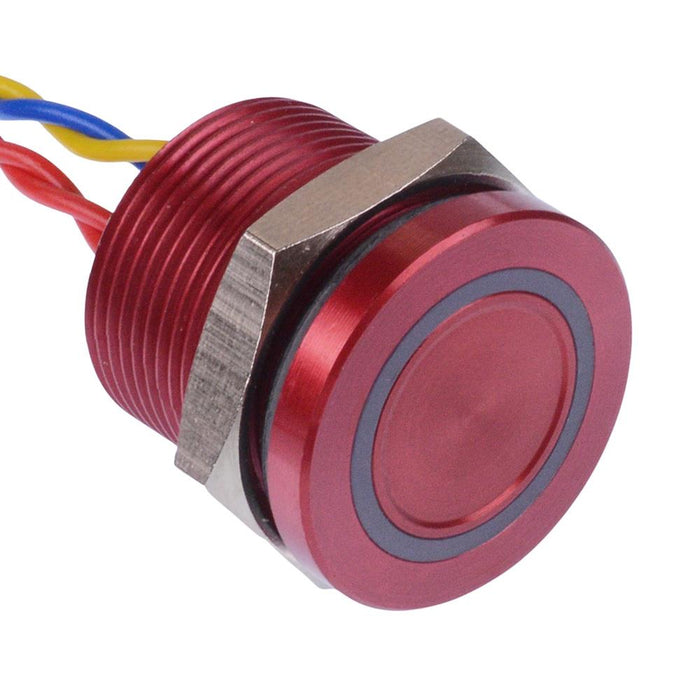

The PBAR9AF6000A0S is an illuminated 19mm momentary piezo switch manufactured by APEM. The switch features a red anodized body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.

  • Body material: red anodized
  • Body colour: red
  • LED colour: red
  • illumination: ring, 5VDC
  • Panel cut-out: 19mm
  • Contacts: SPST-NO
  • Protection rating: IP68, IP69K mounted on panel
  • Rating: 200mA 24VAC/DC
  • Terminals: flying leads
  • Bushing: flat operator, 3mm height
  • Diameter: 22mm
  • Specification
    Actuation Momentary
    Back Order Lead Time 10 Days
    Colour Red
    Contact Configuration SPST
    Contact Rating 0.2A 24VAC/DC
    Current Rating 0.2A
    Electrical Life 50,000,000 Cycles
    Illuminated Yes
    Illumination Colour Red
    Illumination Voltage 5VDC
    Material Anodized
    Mounting Style Panel
    Number of Positions 2
    Operating Temperature -40°C to +75°C
    Panel Cut Out 19mm
    Product Series PBA
    Protection Level IP68
    Switch Operation Off-(On)
    Terminal Type Flying Leads
    Voltage Rating 24VAC/DC
