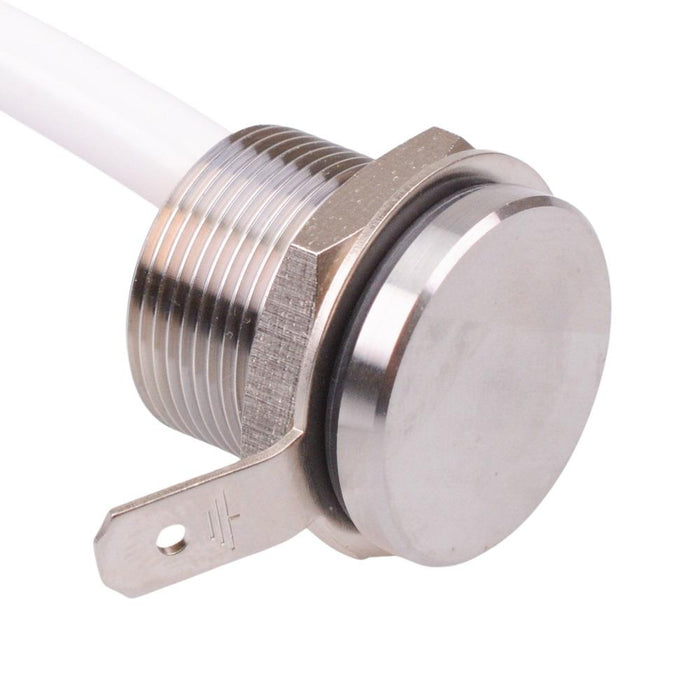

PBAR9AFB000MX APEM Momentary NO 19mm Piezo Switch Prewired IP66 ATEX
by APEM
SKU 490136
MPN: PBAR9AFB000MX
Availability:
10 in stock
Original price
£77.29
-
Original price
£77.29
Original price
£77.29
£77.29
£77.29
-
£77.29
Current price
£77.29
The PBAR9AFB000MX is a 19.2mm momentary piezo switch manufactured by APEM and ATEX approved. The switch features a stainless steel body and is terminated with flying leads. The switch is sealed to IP66 and features a very long life expectancy, making it suitable for a wide range of applications in harsh environments.
Body material: stainless steel 316L Panel cut-out: 19.2mm Contacts: SPST-NO Protection rating: IP66 Rating: 200mA 6VAC/DC, 50mA 24VAC/DC Terminals: flying leads 300mm Bushing: flat operator Diameter: 22.0mm
Specification
| Actuation | Momentary |
| Contact Configuration | SPST |
| Contact Rating | 200mA 6VAC/DC, 50mA 24VAC/DC |
| Current Rating | 0.2A |
| Electrical Life | 50,000,000 Cycles |
| Illuminated | No |
| Material | Stainless Steel |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 2 to 6N |
| Operating Temperature | -40°C to +55°C |
| Panel Cut Out | 19.2mm |
| Product Series | PBA |
| Protection Level | IP66 |
| Switch Operation | Off-(On) |
| Terminal Type | Flying Leads |
| Voltage Rating | 24VAC/DC |
