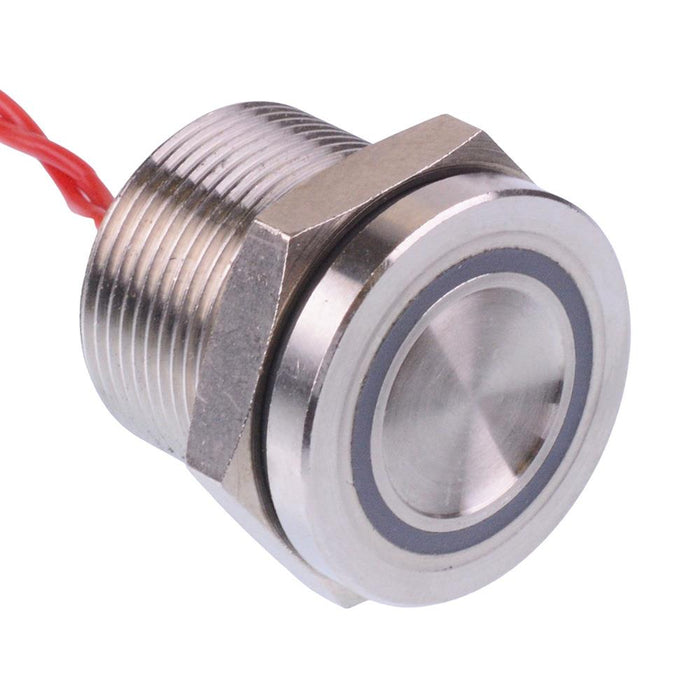

PBAR9PFB120W0G APEM Green LED Latching NO Timed 19mm Piezo Switch IP68

SKU 487297


17 in stock, ready to be shipped
Original price £66.64 - Original price £66.64
Original price
£66.64 Inc VAT
£66.64 - £66.64
Current price £66.64 Inc VAT

The PBAR9PFB120W0G is an illuminated 19mm piezo switch manufactured by APEM. The switch features a stainless steel body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.

  • Timed response, output stays closed for 30 seconds
  • Body material: stainless steel 316L
  • LED colour: green
  • illumination: ring, microcontroller driven
  • Panel cut-out: 19mm
  • Contacts: SPST-NO
  • Protection rating: IP68, IP69K mounted on panel
  • Rating: 200mA 24VAC/DC
  • Terminals: flying leads
  • Bushing: flat operator, 3mm height
  • Diameter: 22mm
Actuation Latching
Colour Green
Contact rating 0.2A 24VAC/DC
Current rating 0.2A
Electrical life 50,000,000 Cycles
Illuminated Yes
Illumination colour Green
Illumination voltage Microcontroller
Material Stainless Steel
Mounting style Panel
Number of poles 1
Number of positions 2
Operating temperature -40°C to +75°C
Panel cut out 19mm
Product series PB
Protection level IP68
Terminal type Flying Leads
Voltage rating 24VAC/DC
