PBARZLF6000Y0S APEM Red LED Latching NO 22mm Piezo Switch Prewired IP68
by APEM
SKU 487558
MPN: PBARZLF6000YOS
Availability:
10 in stock
Original price
£37.65
-
Original price
£37.65
Original price
£37.65
Inc VAT
£37.65
-
£37.65
Current price
£37.65
Inc VAT

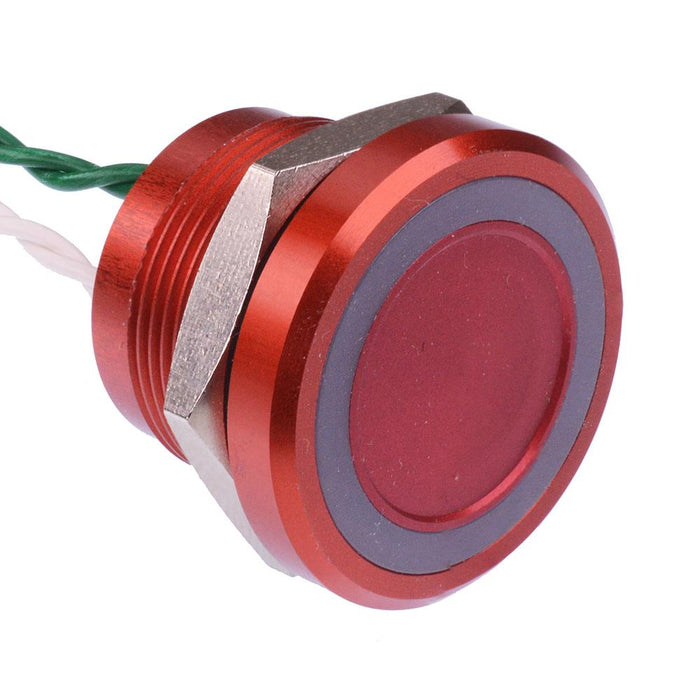

The PBAR9AF6000A0S is an illuminated 19mm momentary piezo switch manufactured by APEM. The switch features a red anodized body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.
Body material: red anodized Body colour: red LED colour: red illumination: ring, 5VDC Panel cut-out: 19mm Contacts: SPST-NO Protection rating: IP68, IP69K mounted on panel Rating: 200mA 24VAC/DC Terminals: flying leads Bushing: flat operator, 3mm height Diameter: 22mm
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Colour | Red |
| Contact rating | 1A 24VAC/DC |
| Current rating | 1A |
| Electrical life | 50,000,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Red |
| Illumination voltage | Microcontroller |
| Material | Anodized |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -40°C to +75°C |
| Panel cut out | 22mm |
| Product series | PB |
| Protection level | IP68 |
| Switch operation | On-Off |
| Terminal type | Flying Leads |
| Voltage rating | 24VAC/DC |
