PBAT5AFB214 APEM Momentary NO 16mm Stainless Steel Piezo Switch Prewired IP68

by APEM
SKU 487858

MPN: PBAT5AFB214

Availability:
8 in stock
Original price £19.59 - Original price £19.59
Original price
£19.59
£19.59 - £19.59
Current price £19.59

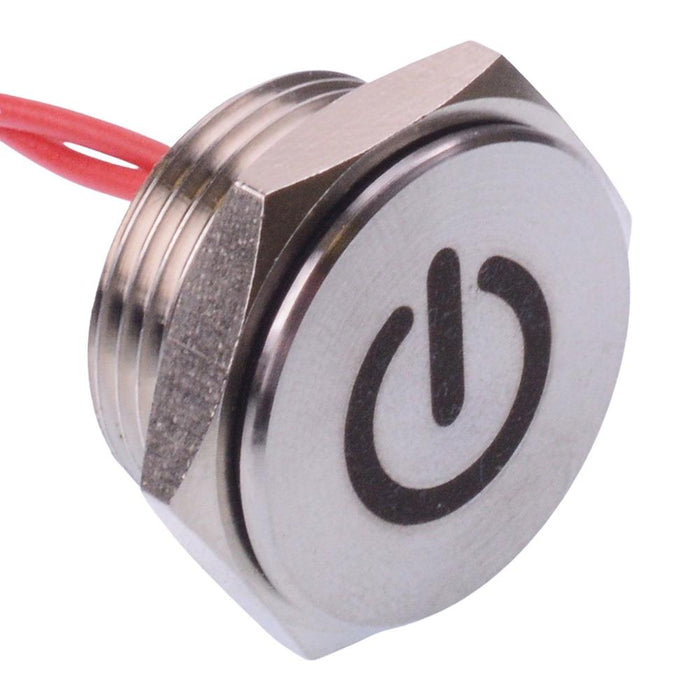

The PBAT5AFB214 is a 16mm momentary piezo switch manufactured by APEM with an engraved power symbol. The switch features a stainless steel body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.

  • Body material: stainless steel
  • Body colour: silver
  • Panel cut-out: 16mm
  • Contacts: SPST-NO
  • Protection rating: IP68, IP69K mounted on panel
  • Rating: 200mA 24VAC/DC
  • Terminals: flying leads
  • Bushing: flat operator, 1mm height
  • Diameter: 18mm
  • Specification
    Actuation Momentary
    Back Order Lead Time 10 Days
    Contact Configuration SPST
    Contact Rating 0.2A 24VAC/DC
    Current Rating 0.2A
    Electrical Life 50,000,000 Cycles
    Illuminated No
    Illumination Colour Non Illuminated
    Material Stainless Steel
    Mounting Style Panel
    Number of Positions 2
    Operating Temperature -40°C to +75°C
    Panel Cut Out 16mm
    Product Series PBA
    Protection Level IP68
    Switch Operation Off-(On)
    Terminal Type Flying Leads
    Voltage Rating 24VAC/DC
