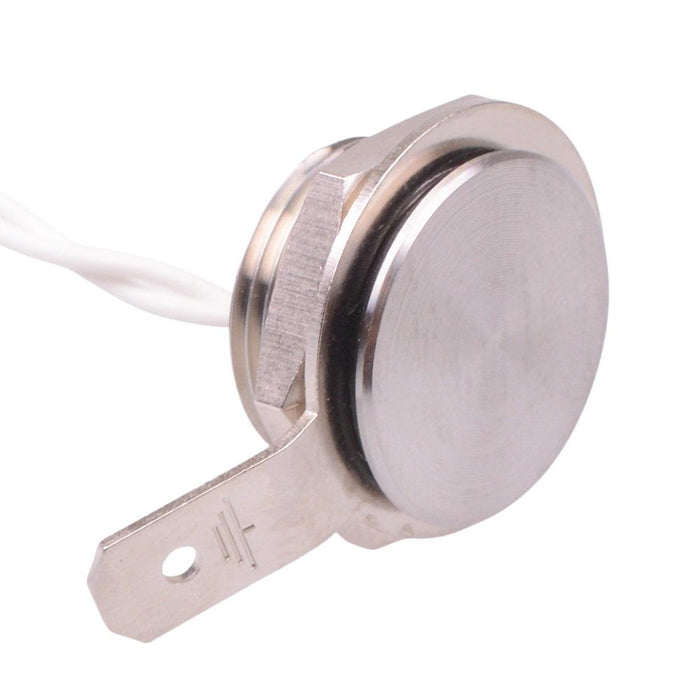

PBAT5CFB000 APEM Momentary NO 16mm Stainless Steel Piezo Switch Prewired IP68
by APEM
SKU 490148
MPN: PBAT5CFB000
Availability:
95 in stock
Original price
£29.12
-
Original price
£29.12
Original price
£29.12
£29.12
-
£29.12
Current price
£29.12
The PBAT5AFB000 is a 16.2mm momentary piezo switch manufactured by APEM. The switch features a stainless steel body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.
Body material: stainless steel 316L Panel cut-out: 16.2mm Contacts: SPST-NO Protection rating: IP68, IP69K mounted on panel Rating: 200mA 24VAC/DC Terminals: flying leads Bushing: flat operator, 1mm height Diameter: 18mm
Specification
| Actuation | Momentary |
| Contact Configuration | SPST |
| Contact Rating | 0.2A 24VAC/DC |
| Current Rating | 0.2A |
| Electrical Life | 50,000,000 Cycles |
| Illuminated | No |
| Material | Stainless Steel |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +75°C |
| Panel Cut Out | 16.2mm |
| Product Series | PBA |
| Protection Level | IP68 |
| Switch Operation | Off-(On) |
| Terminal Type | Flying Leads |
| Voltage Rating | 24VAC/DC |
