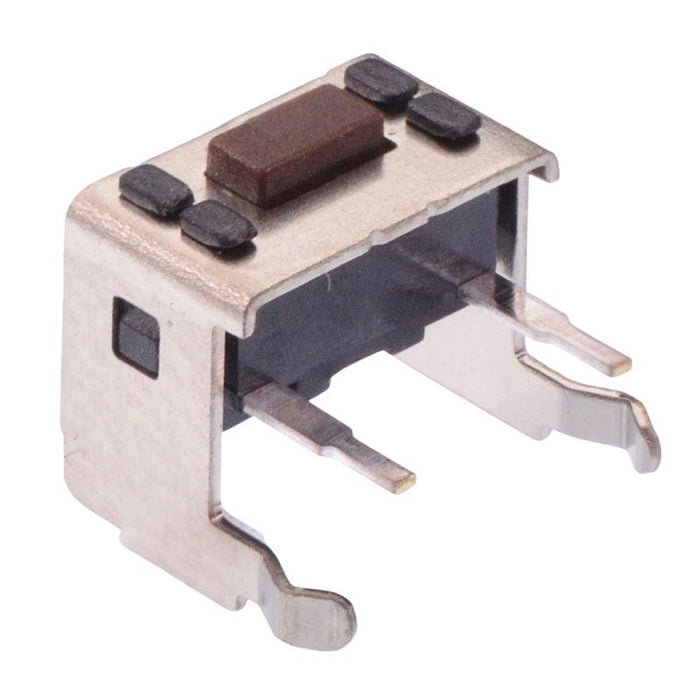

PHAP5-10RA2S2T2N2 0.7mm Button 3.5mm x 6mm Right Angle Through Hole Tactile Switch APEM

by APEM
SKU 486114

MPN: PHAP5-10RA2S2T2N2

Availability:
499 in stock
Original price £0.53 - Original price £0.53
Original price
£0.53
£0.53 - £0.53
Current price £0.53
The PHAP5-10RA2S2T2N2 is a right angle tactile switch with a 3.5mm x 6mm standard package and 0.7mm length button. The switch provides a positive tactile feedback and is supplied in bulk packaging, suitable for through hole mounting.

  • Right angle through hole mounting
  • 3.5mm x 6mm package
  • 0.7mm length button
  • Rating: 50mA 12VDC
  • Operating force: 160g
  • Travel: 0.25mm
  • APEM PHAP5-10 series
  • Specification
    Actuation Momentary
    Back Order Lead Time 10 Days
    Contact Configuration SPST
    Contact Material Silver Plated Stainless Steel
    Contact Rating 50mA 12VDC
    Current Rating 50mA
    Height 0.7mm
    Material Polyamide
    MOQ 5
    Mounting Style PCB
    Number of Poles 1
    Number of Positions 2
    Operating Force 160g
    Operating Temperature -25°C to +70°C
    Product Series PHAP5-10
    Switch Operation Off-(On)
    Terminal Type Through Hole
    Voltage Rating 12VDC
