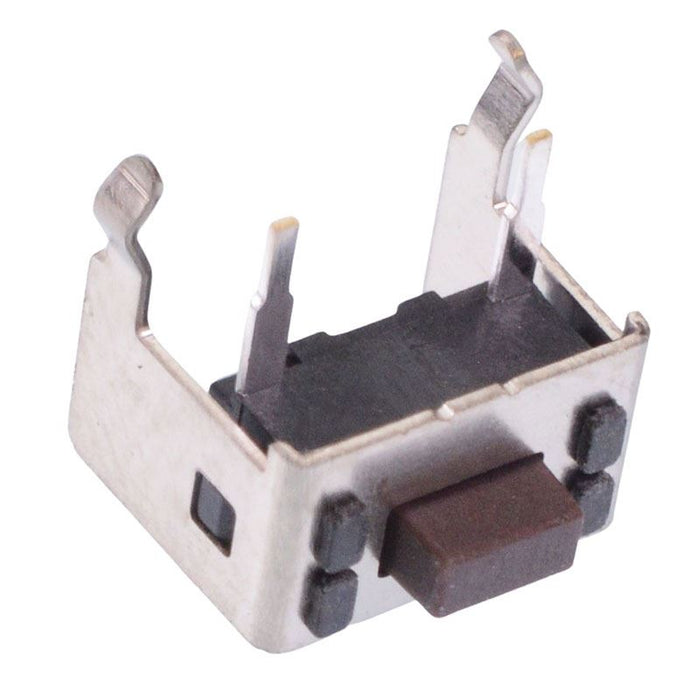

PHAP5-10RA2T2T2N2 1.4mm Button 3.5mm x 6mm Right Angle Through Hole Tactile Switch APEM
by APEM
SKU 486116
MPN: PHAP5-10RA2T2T2N2
Availability:
495 in stock
Original price
£0.53
-
Original price
£0.53
Original price
£0.53
£0.53
-
£0.53
Current price
£0.53
The PHAP5-10RA2T2T2N2 is a right angle tactile switch with a 3.5mm x 6mm standard package and 1.4mm length button. The switch provides a positive tactile feedback and is supplied in bulk packaging, suitable for through hole mounting.
Right angle through hole mounting
3.5mm x 6mm package
1.4mm length button
Rating: 50mA 12VDC
Operating force: 160g
Travel: 0.25mm
APEM PHAP5-10 series
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPST |
| Contact Material | Silver Plated Stainless Steel |
| Contact Rating | 50mA 12VDC |
| Current Rating | 50mA |
| Height | 1.4mm |
| Material | Polyamide |
| MOQ | 5 |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 160g |
| Operating Temperature | -25°C to +70°C |
| Product Series | PHAP5-10 |
| Switch Operation | Off-(On) |
| Terminal Type | Through Hole |
| Voltage Rating | 12VDC |
