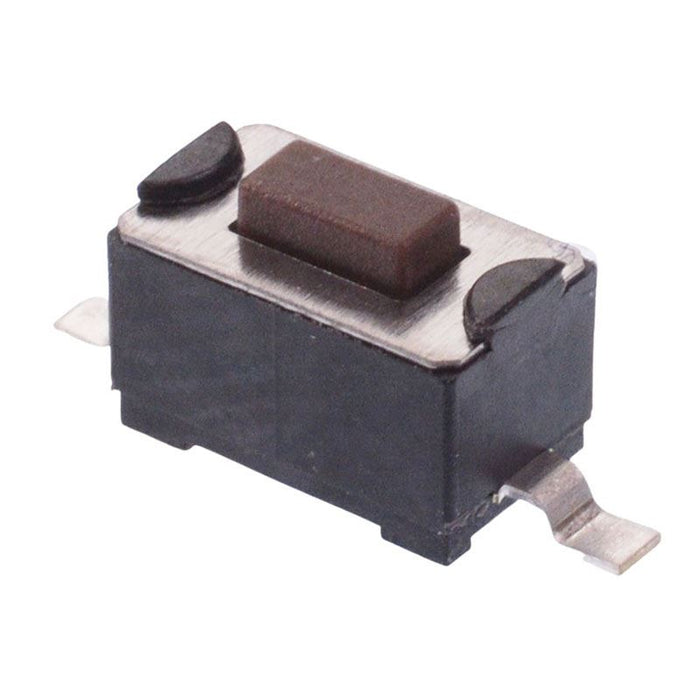

PHAP5-10VA2A2S2N4 APEM 4.3mm Height 3.5mm x 6mm Surface Mount Tactile Switch

SKU 486117


1795 in stock
Original price £0.28 - Original price £0.28
Original price
£0.28 Inc VAT
£0.28 - £0.28
Current price £0.28 Inc VAT
The PHAP5-10VA2A2S2N4 is a vertical tactile switch with a 3.5mm x 6mm standard package and 4.3mm height. The switch provides a positive tactile feedback and is supplied in tape and reel packaging, suitable for SMT mounting.

  • Vertical SMT mounting
  • 3.5mm x 6mm package
  • 4.3mm height
  • Rating: 50mA 12VDC
  • Operating force: 160g
  • Travel: 0.25mm
  • APEM PHAP5-10 series
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Contact configuration SPST
    Contact material Silver Plated Stainless Steel
    Contact rating 50mA 12VDC
    Current rating 50mA
    Height 4.3mm
    Material Polyamide
    Moq 5
    Mounting style PCB
    Number of poles 1
    Number of positions 2
    Operating force 160g
    Operating temperature -25°C to +70°C
    Product series PHAP5-10
    Switch operation Off-(On)
    Terminal type Surface Mount
    Voltage rating 12VDC
