PHAP5-10VA2A2T2N2 4.3mm Height 3.5mm x 6mm Through Hole Tactile Switch APEM
by APEM
SKU 486118
MPN: PHAP5-10VA2A2T2N2
Availability:
990 in stock
Original price
£0.24
-
Original price
£0.24
Original price
£0.24
£0.24
-
£0.24
Current price
£0.24

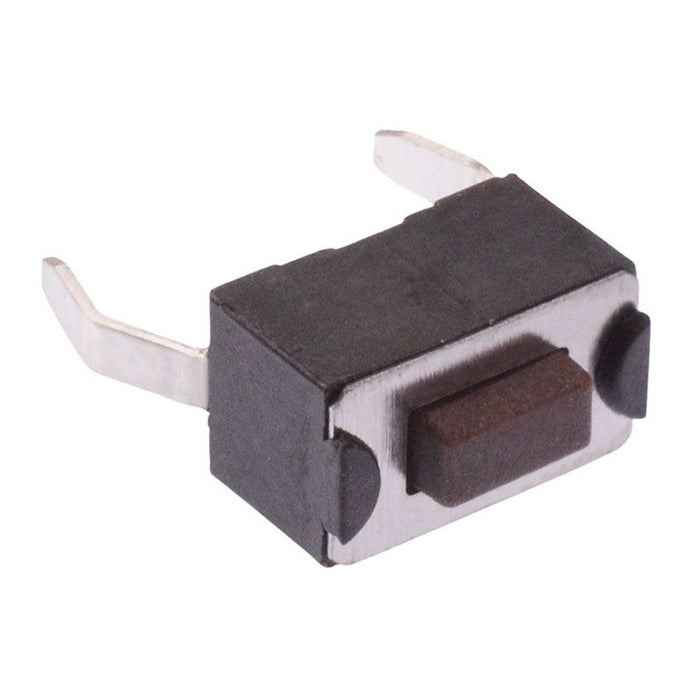

The PHAP5-10VA2A2T2N2 is a vertical tactile switch with a 3.5mm x 6mm standard package and 4.3mm height. The switch provides a positive tactile feedback and is supplied in bulk packaging, suitable for through hole mounting.
Vertical through hole mounting
3.5mm x 6mm package
4.3mm height
Rating: 50mA 12VDC
Operating force: 160g
Travel: 0.25mm
APEM PHAP5-10 series
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPST |
| Contact Material | Silver Plated Stainless Steel |
| Contact Rating | 50mA 12VDC |
| Current Rating | 50mA |
| Height | 4.3mm |
| Material | Polyamide |
| MOQ | 5 |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 160g |
| Operating Temperature | -25°C to +70°C |
| Product Series | PHAP5-10 |
| Switch Operation | Off-(On) |
| Terminal Type | Through Hole |
| Voltage Rating | 12VDC |
