PHAP5-30RA2B3S2N4 5mm Button 6mm x 6mm Right Angle Surface Mount Tactile Switch 260g APEM
by APEM
SKU 486126
MPN: PHAP5-30RA2B3S2N4
Availability:
500 in stock
Original price
£0.38
-
Original price
£0.38
Original price
£0.38
£0.38
-
£0.38
Current price
£0.38

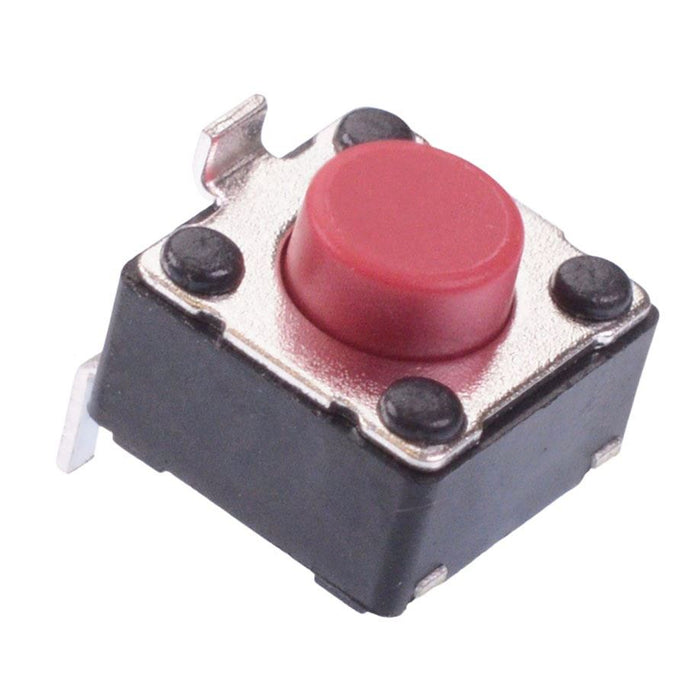

The PHAP5-30RA2B3S2N4 is a right angle tactile switch with a 6mm x 6mm standard package and 5mm height. The switch provides a positive tactile feedback and is supplied in tape and reel packaging, suitable for SMT mounting.
Right angle SMT mounting
6mm x 6mm package
5mm height
Rating: 50mA 12VDC
Operating force: 260g
Travel: 0.25mm
APEM PHAP5-30 series
Specification
Actuation | Momentary |
Back Order Lead Time | 10 Days |
Contact Configuration | SPST |
Contact Material | Silver Plated Phosphor Bronze |
Contact Rating | 50mA 12VDC |
Current Rating | 50mA |
Height | 5mm |
Material | Polyamide |
MOQ | 5 |
Mounting Style | PCB |
Number of Poles | 1 |
Number of Positions | 2 |
Operating Force | 260g |
Operating Temperature | -25°C to +70°C |
Product Series | PHAP5-30 |
Switch Operation | Off-(On) |
Terminal Type | Surface Mount |
Voltage Rating | 12VDC |
