PHAP5-30RA2H3T2N2 APEM 8.35mm Button 6mm x 6mm Right Angle Through Hole Tactile Switch 260g

by APEM
SKU 486136

MPN: PHAP5-30RA2H3T2N2

Back Order Availability: 10 Days

Availability:
500 in stock, ready to be shipped
Original price £0.23 - Original price £0.23
Original price
£0.23 Inc VAT
£0.23 - £0.23
Current price £0.23 Inc VAT

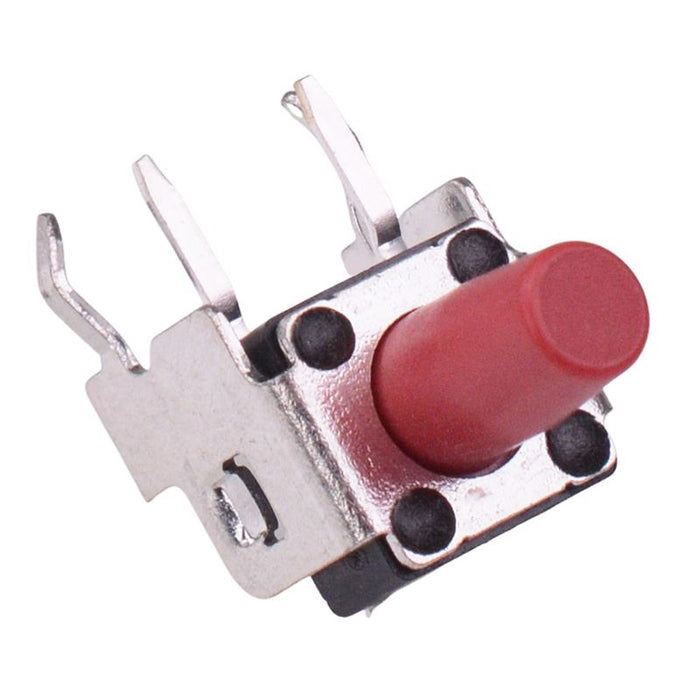

The PHAP5-30RA2H3T2N2 is a right angle tactile switch with a 6mm x 6mm standard package and 8.35mm height. The switch provides a positive tactile feedback and is supplied in bulk packaging, suitable for through hole mounting.

  • Right angle through hole mounting
  • 6mm x 6mm package
  • 8.35mm height
  • Rating: 50mA 12VDC
  • Operating force: 260g
  • Travel: 0.25mm
  • APEM PHAP5-30 series
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Contact configuration SPST
    Contact material Silver Plated Phosphor Bronze
    Contact rating 50mA 12VDC
    Current rating 50mA
    Height 8.35mm
    Material Polyamide
    Mounting style Through Hole
    Number of poles 1
    Number of positions 2
    Operating force 260g
    Operating temperature -25°C to +70°C
    Product series PHAP5-30
    Switch operation Off-(On)
    Terminal type Through Hole
    Voltage rating 12VDC
