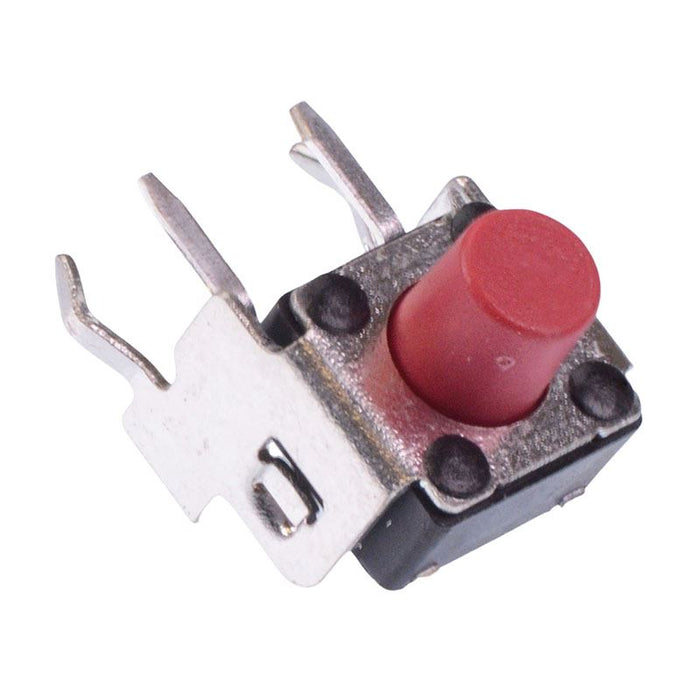

PHAP5-30RA2W3T2N2 5.85mm Button 6mm x 6mm Right Angle Through Hole Tactile Switch 260g APEM

by APEM
SKU 486142

MPN: PHAP5-30RA2W3T2N2

Availability:
495 in stock
Original price £0.24 - Original price £0.24
Original price
£0.24
£0.24 - £0.24
Current price £0.24
The PHAP5-30RA2W3T2N2 is a right angle tactile switch with a 6mm x 6mm standard package and 5.85mm height. The switch provides a positive tactile feedback and is supplied in bulk packaging, suitable for through hole mounting.

  • Right angle through hole mounting
  • 6mm x 6mm package
  • 5.85mm height
  • Rating: 50mA 12VDC
  • Operating force: 260g
  • Travel: 0.25mm
  • APEM PHAP5-30 series
  • Specification
    Actuation Momentary
    Back Order Lead Time 10 Days
    Contact Configuration SPST
    Contact Material Silver Plated Phosphor Bronze
    Contact Rating 50mA 12VDC
    Current Rating 50mA
    Height 5.85mm
    Material Polyamide
    MOQ 5
    Mounting Style PCB
    Number of Poles 1
    Number of Positions 2
    Operating Force 260g
    Operating Temperature -25°C to +70°C
    Product Series PHAP5-30
    Switch Operation Off-(On)
    Terminal Type Through Hole
    Voltage Rating 12VDC
