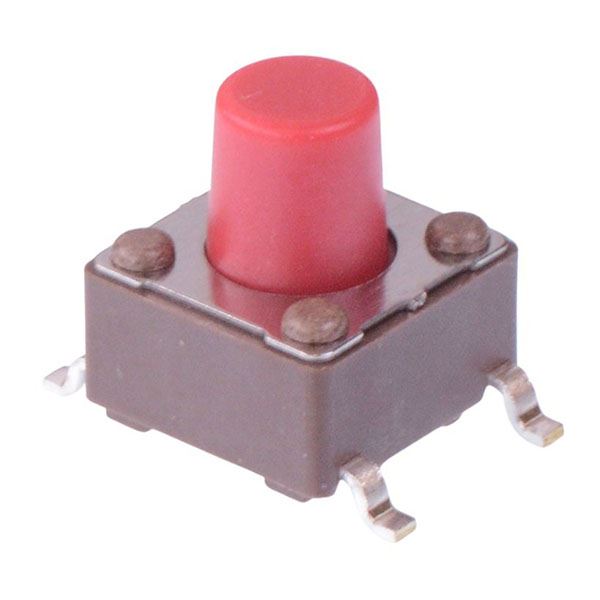

PHAP5-30VA2C3S2N3 7mm Height 6mm x 6mm Surface Mount Tactile Switch 260g Tube Packaging APEM
by APEM
SKU 486158
MPN: PHAP5-30VA2C3S2N3
Availability:
1155 in stock
Original price
£0.24
-
Original price
£0.24
Original price
£0.24
£0.24
-
£0.24
Current price
£0.24
The PHAP5-30VA2C3S2N3 is a vertical tactile switch with a 6mm x 6mm standard package and 7mm height. The switch provides a positive tactile feedback and is supplied in tube packaging, suitable for SMT mounting.
Vertical SMT mounting
6mm x 6mm package
7mm height
Rating: 50mA 12VDC
Operating force: 260g
Travel: 0.25mm
APEM PHAP5-30 series
Specification
Actuation | Momentary |
Back Order Lead Time | 10 Days |
Contact Configuration | SPST |
Contact Material | Silver Plated Phosphor Bronze |
Contact Rating | 50mA 12VDC |
Current Rating | 50mA |
Height | 7mm |
Material | Polyamide |
MOQ | 5 |
Mounting Style | PCB |
Number of Poles | 1 |
Number of Positions | 2 |
Operating Force | 260g |
Operating Temperature | -25°C to +70°C |
Product Series | PHAP5-30 |
Switch Operation | Off-(On) |
Terminal Type | Surface Mount |
Voltage Rating | 12VDC |
