PHAP5-30VA2K3S2N3 APEM 7.3mm Height Square 6mm x 6mm Surface Mount Tactile Switch 260g Tube Packaging

SKU 486170


Back Order Availability: 10 Days

385 in stock, ready to be shipped
Original price £0.25 - Original price £0.25
Original price
£0.25 Inc VAT
£0.25 - £0.25
Current price £0.25 Inc VAT

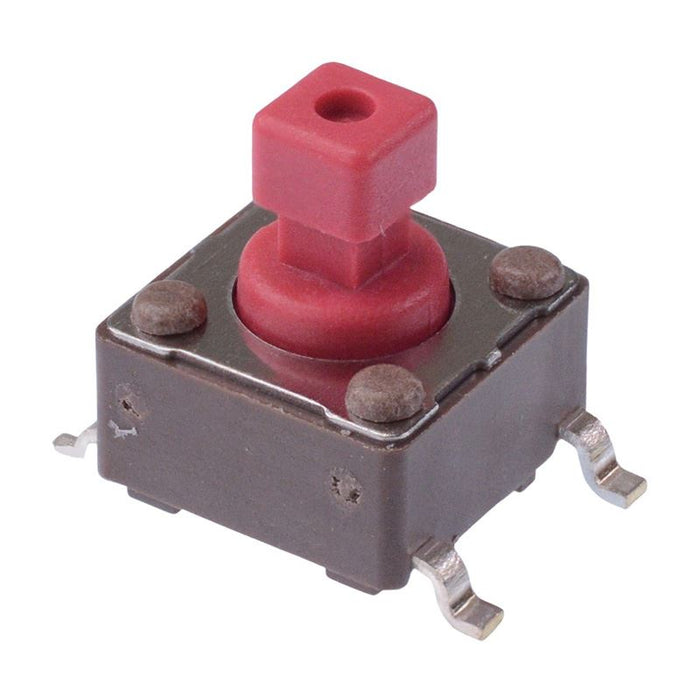

The PHAP5-30VA2K3S2N3 is a vertical tactile switch with a 6mm x 6mm standard package and 7.3mm height. The switch provides a positive tactile feedback and is supplied in tube packaging, suitable for SMT mounting.

  • Vertical SMT mounting
  • 6mm x 6mm package
  • 7.3mm height
  • 2.4mm x 2.4mm square actuator
  • Rating: 50mA 12VDC
  • Operating force: 260g
  • Travel: 0.25mm
  • APEM PHAP5-30 series
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Contact configuration SPST
    Contact material Silver Plated Phosphor Bronze
    Contact rating 50mA 12VDC
    Current rating 50mA
    Height 7.3mm
    Material Polyamide
    Mounting style Surface Mount
    Number of poles 1
    Number of positions 2
    Operating force 260g
    Operating temperature -25°C to +70°C
    Product series PHAP5-30
    Switch operation Off-(On)
    Terminal type Surface Mount
    Voltage rating 12VDC
