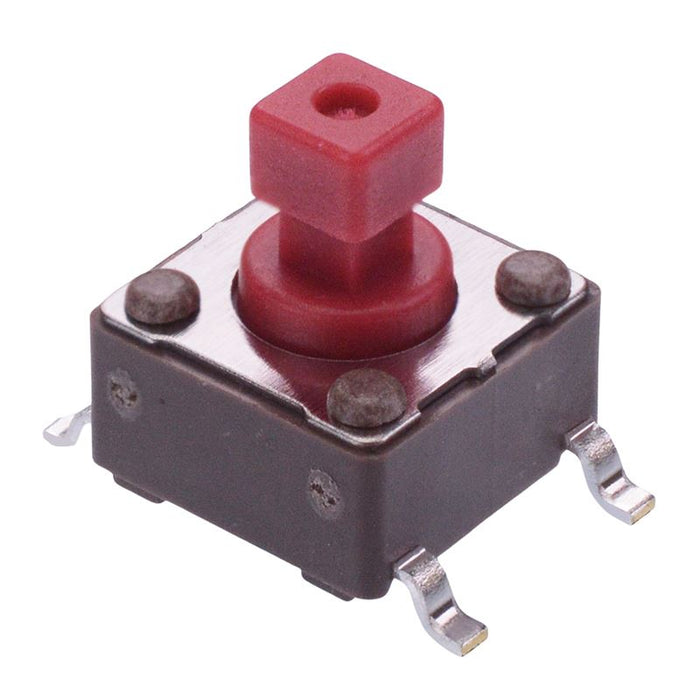

PHAP5-30VA2K3S2N4 7.3mm Height Square 6mm x 6mm Surface Mount Tactile Switch 260g Tape Packaging APEM

by APEM
SKU 486171

MPN: PHAP5-30VA2K3S2N4

Availability:
1296 in stock
Original price £0.25 - Original price £0.25
Original price
£0.25
£0.25 - £0.25
Current price £0.25
The PHAP5-30VA2K3S2N4 is a vertical tactile switch with a 6mm x 6mm standard package and 7.3mm height. The switch provides a positive tactile feedback and is supplied in tape and reel packaging, suitable for SMT mounting.

  • Vertical SMT mounting
  • 6mm x 6mm package
  • 7.3mm height
  • 2.4mm x 2.4mm square actuator
  • Rating: 50mA 12VDC
  • Operating force: 260g
  • Travel: 0.25mm
  • APEM PHAP5-30 series
  • Specification
    Actuation Momentary
    Back Order Lead Time 10 Days
    Contact Configuration SPST
    Contact Material Silver Plated Phosphor Bronze
    Contact Rating 50mA 12VDC
    Current Rating 50mA
    Height 7.3mm
    Material Polyamide
    MOQ 5
    Mounting Style PCB
    Number of Poles 1
    Number of Positions 2
    Operating Force 260g
    Operating Temperature -25°C to +70°C
    Product Series PHAP5-30
    Switch Operation Off-(On)
    Terminal Type Surface Mount
    Voltage Rating 12VDC
