PHAP5-31VA2N3S2W3 APEM 3.1mm Height 6mm x 6mm Low Profile Surface Mount Tactile Switch 260g Tube Packaging
by APEM
SKU 486176
MPN: PHAP5-31VA2N3S2W3
Availability:
375 in stock
Original price
£0.55
-
Original price
£0.55
Original price
£0.55
Inc VAT
£0.55
-
£0.55
Current price
£0.55
Inc VAT

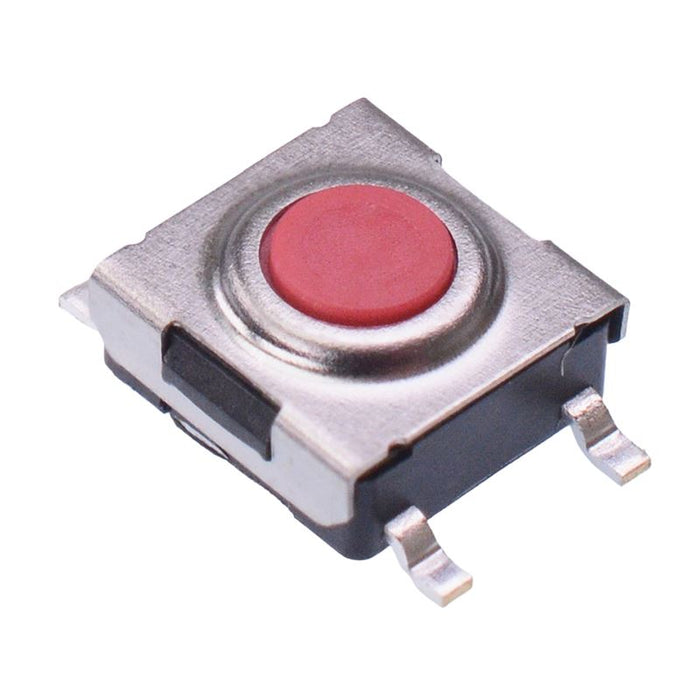

The PHAP5-31VA2N3S2W3 is a low profile tactile switch with a 6mm x 6mm standard package and 3.1mm height. The switch provides a positive tactile feedback and is supplied in tube packaging, suitable for SMT mounting.
Vertical SMT mounting 6mm x 6mm package 3.1mm height Washable Rating: 50mA 12VDC Operating force: 260g Travel: 0.25mm APEM PHAP5-31 series
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Contact configuration | SPST |
| Contact material | Stainless Steel |
| Contact rating | 50mA 12VDC |
| Current rating | 50mA |
| Height | 3.1mm |
| Material | Polyamide |
| Moq | 5 |
| Mounting style | PCB |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating force | 260g |
| Operating temperature | -25°C to +70°C |
| Product series | PHAP5-31 |
| Switch operation | Off-(On) |
| Terminal type | Surface Mount |
| Voltage rating | 12VDC |
