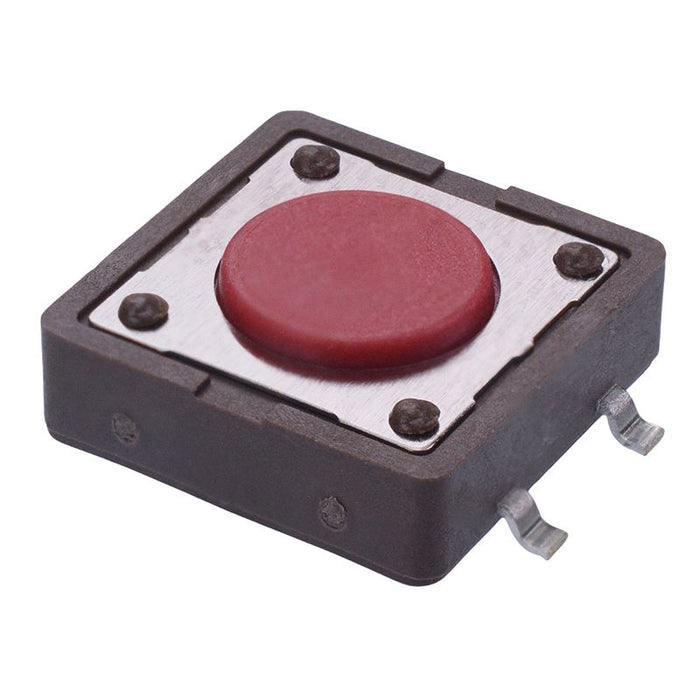

PHAP5-50VA2A3S2N3 APEM 4.3mm Height 12mm x 12mm Surface Mount Tactile Switch 260g Tube Packaging
by APEM
SKU 486182
MPN: PHAP5-50VA2A3S2N3
Back Order Availability: 10 Days
Availability:
320 in stock, ready to be shipped
Original price
£0.33
-
Original price
£0.33
Original price
£0.33
Inc VAT
£0.33
-
£0.33
Current price
£0.33
Inc VAT
The PHAP5-50VA2A3S2N3 is a vertical tactile switch with a 12mm x 12mm standard package and 4.3mm height. The switch provides a positive tactile feedback and is supplied in tube packaging, suitable for SMT mounting.
Vertical SMT mounting 12mm x 12mm package 4.3mm height Rating: 50mA 12VDC Operating force: 260g Travel: 0.35mm APEM PHAP5-50 series
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Contact configuration | SPST |
| Contact material | Silver Plated Phosphor Bronze |
| Contact rating | 50mA 12VDC |
| Current rating | 50mA |
| Height | 4.3mm |
| Material | Nylon |
| Mounting style | Surface Mount |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating force | 260g |
| Operating temperature | -25°C to +70°C |
| Product series | PHAP5-50 |
| Switch operation | Off-(On) |
| Terminal type | Surface Mount |
| Voltage rating | 12VDC |
