PHAP5-50VA2K2T2N2 APEM 7.3mm Height Square 12mm x 12mm Through Hole Tactile Switch 160g
by APEM
SKU 486186
MPN: PHAP5-50VA2K2T2N2
Availability:
500 in stock
Original price
£0.33
-
Original price
£0.33
Original price
£0.33
Inc VAT
£0.33
-
£0.33
Current price
£0.33
Inc VAT

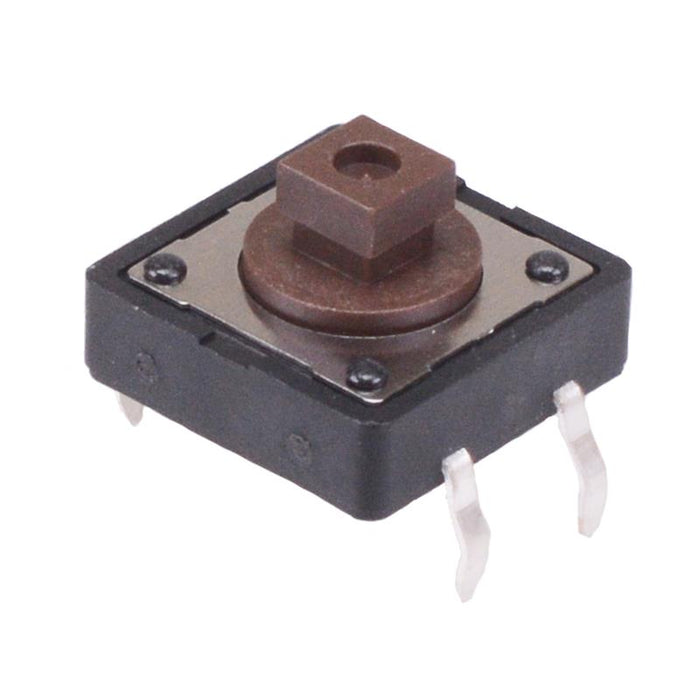

The PHAP5-50VA2K2T2N2 is a vertical tactile switch with a 12mm x 12mm standard package and 7.3mm height. The switch provides a positive tactile feedback and is supplied in bulk packaging, suitable for through hole mounting.
Vertical through hole mounting 12mm x 12mm package 7.3mm height 3.8 x 3.8mm square actuator Rating: 50mA 12VDC Operating force: 160g Travel: 0.35mm APEM PHAP5-50 series
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Contact configuration | SPST |
| Contact material | Silver Plated Phosphor Bronze |
| Contact rating | 50mA 12VDC |
| Current rating | 50mA |
| Height | 7.3mm |
| Material | Nylon |
| Moq | 5 |
| Mounting style | PCB |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating force | 160g |
| Operating temperature | -25°C to +70°C |
| Product series | PHAP5-50 |
| Switch operation | Off-(On) |
| Terminal type | Through Hole |
| Voltage rating | 12VDC |
