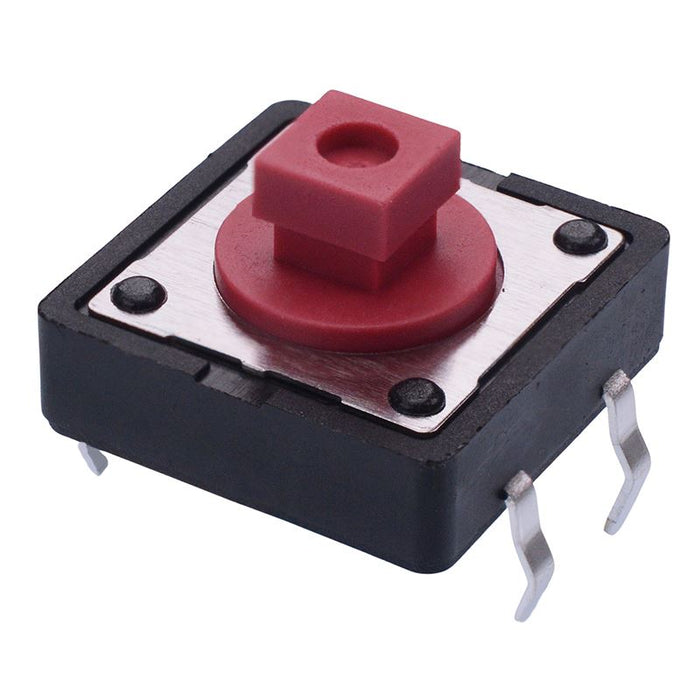

PHAP5-50VA2K3T2N2 APEM 7.3mm Height Square 12mm x 12mm Through Hole Tactile Switch 260g

by APEM
SKU 486189

MPN: PHAP5-50VA2K3T2N2

Back Order Availability: 10 Days

Availability:
490 in stock, ready to be shipped
Original price £0.31 - Original price £0.31
Original price
£0.31 Inc VAT
£0.31 - £0.31
Current price £0.31 Inc VAT
The PHAP5-50VA2K3T2N2 is a vertical tactile switch with a 12mm x 12mm standard package and 7.3mm height. The switch provides a positive tactile feedback and is supplied in bulk packaging, suitable for through hole mounting.

  • Vertical through hole mounting
  • 12mm x 12mm package
  • 7.3mm height
  • 3.8 x 3.8mm square actuator
  • Rating: 50mA 12VDC
  • Operating force: 260g
  • Travel: 0.35mm
  • APEM PHAP5-50 series
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Contact configuration SPST
    Contact material Silver Plated Phosphor Bronze
    Contact rating 50mA 12VDC
    Current rating 50mA
    Height 7.3mm
    Material Nylon
    Mounting style Through Hole
    Number of poles 1
    Number of positions 2
    Operating force 260g
    Operating temperature -25°C to +70°C
    Product series PHAP5-50
    Switch operation Off-(On)
    Terminal type Through Hole
    Voltage rating 12VDC
