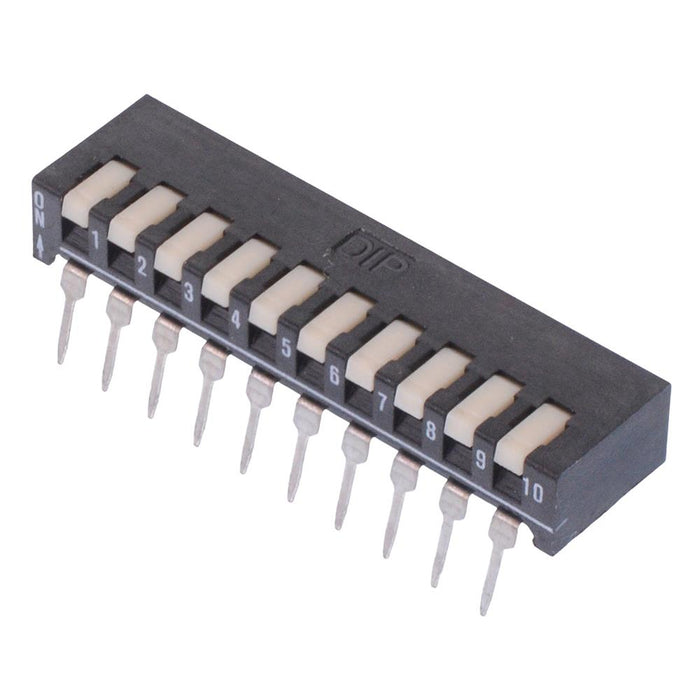

PI100900 APEM 10-Way 2.54mm Sealed Piano Low Profile DIP Switch SPST
by APEM
SKU 487368
MPN: PI100900
Availability:
980 in stock
Original price
£1.00
-
Original price
£1.00
Original price
£1.00
£1.00
£1.00
-
£1.00
Current price
£1.00
The PBARYACB037C3A is an illuminated 22mm momentary piezo switch manufactured by APEM. The switch features a stainless steel body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.
Body material: stainless steel 316L Body colour: silver LED colour: RGB illumination: ring, 5VDC Panel cut-out: 22mm Contacts: SPST-NO Protection rating: IP68, IP69K mounted on panel Rating: 200mA 24VAC/DC Terminals: flying leads Bushing: with chamfer, 4.5mm height Diameter: 28mm
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Material | Gold Plated |
| Contact Rating | 100mA 50VDC |
| Current Rating | 25mA |
| Material | PBT |
| Mounting Style | Through Hole |
| Number of Positions | 2 |
| Number of Ways | 10 |
| Operating Temperature | -40°C to +85°C |
| Pitch | 2.54mm |
| Product Series | PI |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 24VDC |
