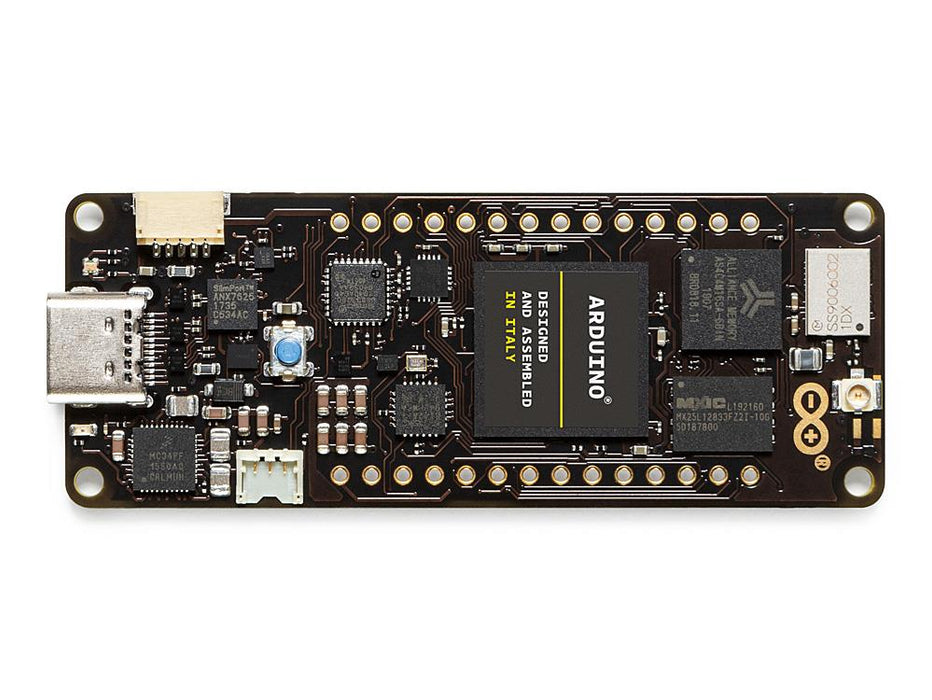

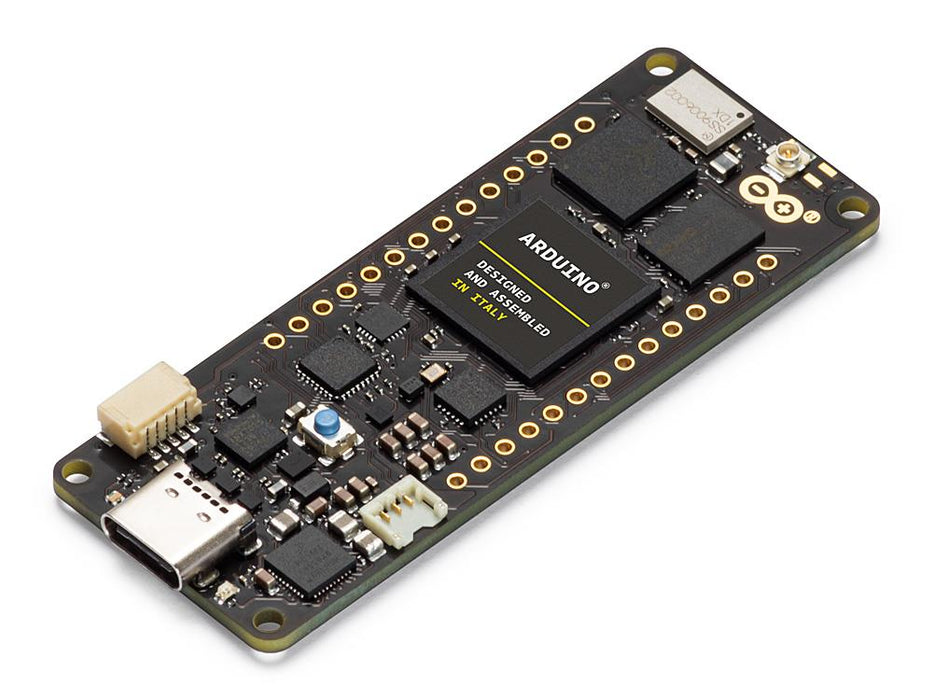

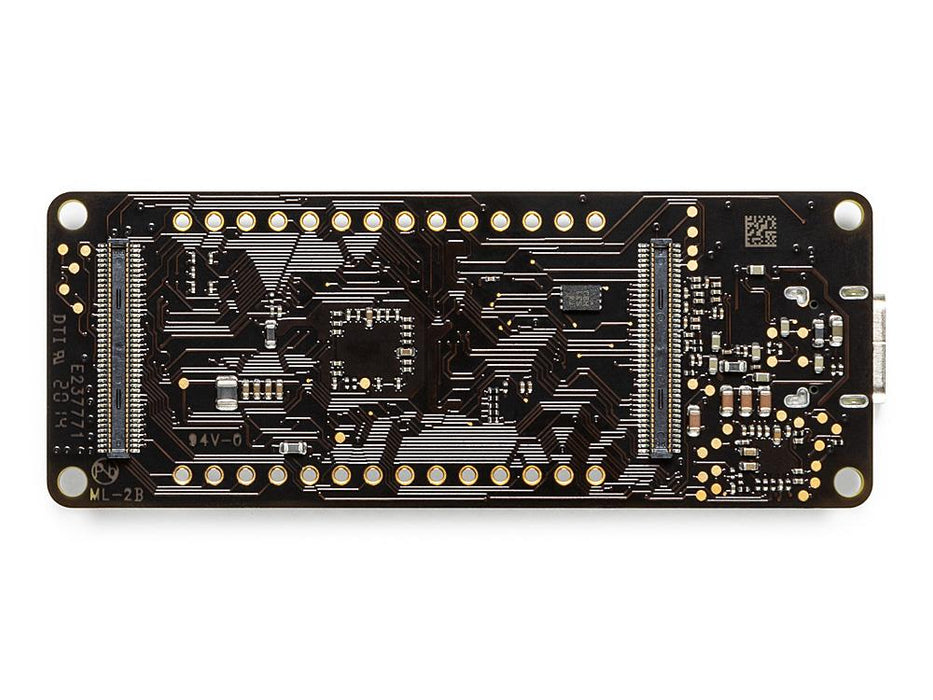

Portenta H7

by Arduino
SKU 490744

MPN: ABX00042

Availability:
Out of stock
Sold out
Original price £102.00 - Original price £102.00
Original price
£102.00
£102.00 - £102.00
Current price £102.00
The Portenta H7 allows you to build your next smart project. Ever wanted an automated house? Or a smart garden? Well, now it's easy with the Arduino IoT Cloud compatible boards. It means you can connect devices, visualize data, control and share your projects from anywhere in the world. Whether you're a beginner or a pro, There are a wide range of plans to make sure you get the features you need. Portenta H7 simultaneously runs high level code along with real time tasks. The design includes two processors that can run tasks in parallel. The Portenta functionality is two-fold, it can either be running like any other embedded microcontroller board, or as the main processor of an embedded computer. Portenta can easily run processes created with TensorFlow Lite, you could have one of the cores computing a computer vision algorithm on the fly, while the other could be making low-level operations like controlling a motor, or acting as a user interface. H7's main processor is the dual core STM32H747 including a Cortex M7 running at 480 MHz and a Cortex M4 running at 240 MHz. The two cores communicate via a Remote Procedure Call mechanism that allows calling functions on the other processor seamlessly. Probably one of the most exciting features of the Portenta H7 is the possibility of connecting an external monitor to build your own dedicated embedded computer with a user interface. This is possible thanks to the STM32H747 processor's on-chip GPU, the Chrom-ART Accelerator. Besides the GPU, the chip includes a dedicated JPEG encoder and decoder. The Portenta family adds two 80 pin high density connectors at the bottom of the board. This ensures scalability for a wide range of applications by simply upgrading your Portenta board to the one suiting your needs. The onboard wireless module allows simultaneous management of WiFi and Bluetooth connectivity. The WiFi interface can be operated as an Access Point, as a Station or as a dual mode simultaneous AP/STA and can handle up to 65 Mbps transfer rate. Bluetooth interface supports Bluetooth Classic and Bluetooth Low Energy.

  • High performance
  • Arduino compatibility
  • Easy to use
  • Reliable connection
  • Wide application range
  • Specification
    Analog Inputs 3
    Analog Outputs 2 (DAC)
    Connectivity WiFi, Bluetooth Low Energy
    Input Voltage 5-21V
    Microcontroller STM32H747XI
    Operating Voltage 3.3V
    Support Batteries Li-Po Single Cell, 3.7V, 700mAh Minimum (integrated charger)
    Type Board
    UART Interfaces x4
