PQR121L0Y12S 16-Key Yellow illuminated 12V Stainless Steel Keypad IP65 APEM

by APEM
SKU 487307

MPN: PQR121L0Y12S

Availability:
14 in stock
Original price £127.62 - Original price £127.62
Original price
£127.62
£127.62 - £127.62
Current price £127.62

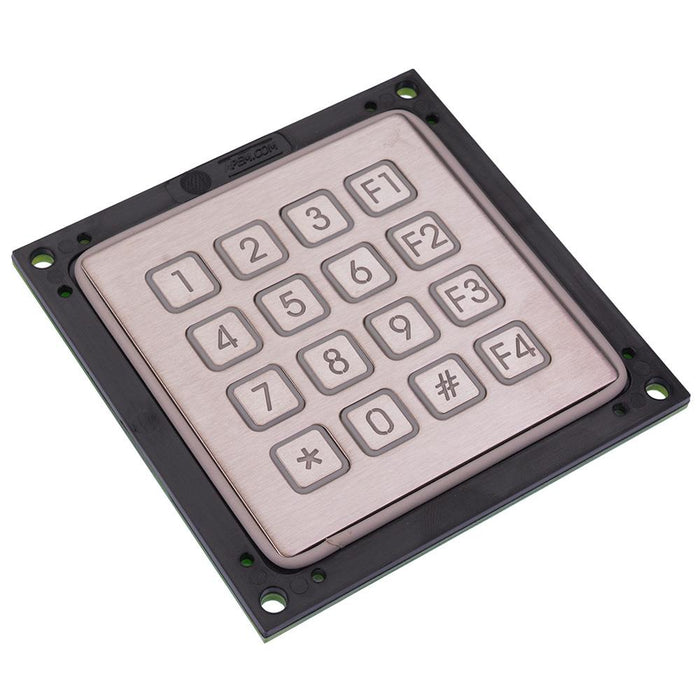

The PQR121L0Y12S is a 16 button keypad manufactured by APEM, featuring a stainless steel front yellow 12V LED illumination. The keypad is suitable for rear mounting and its rugged construction makes it ideal for harsh environments.

  • 16 keys
  • Sealed to IP65
  • NO contacts
  • With frame
  • 316L stainless steel keytop
  • Yellow 12V illumination
  • Rating: 50mA at 12VDC
  • 15mm square keys
  • Keypad size: 106 x 110mm (width x height)
  • Panel cut-out: 80.5 x 100.5mm (width x height)
  • Panel thickness: 1.5-2mm
  • Specification
    Actuation Momentary
    Back Order Lead Time 10 Days
    Colour Yellow
    Contact Configuration NO
    Contact Material Gold Plated
    Contact Rating 50mA 12VDC
    Current Rating 50mA
    Illuminated Yes
    Illumination Colour Yellow
    Illumination Voltage 12VDC
    Material Stainless Steel
    MOQ 1
    Mounting Style Panel
    Operating Temperature -20°C to +70°C
    Panel Cut Out 80.5 x 100.5mm
    Panel Thickness 1.5-2.5mm
    Product Series PR
    Protection Level IP65
    Switch Operation Off-(On)
    Terminal Type Connector
    Voltage Rating 12VDC
