PQR15LXR12S 15-Key Stainless Steel Keypad IP65 APEM

by APEM
SKU 490149

MPN: PQR15LXR12S

Availability:
Only 5 left!
Original price £224.05 - Original price £224.05
Original price
£224.05
£224.05 - £224.05
Current price £224.05

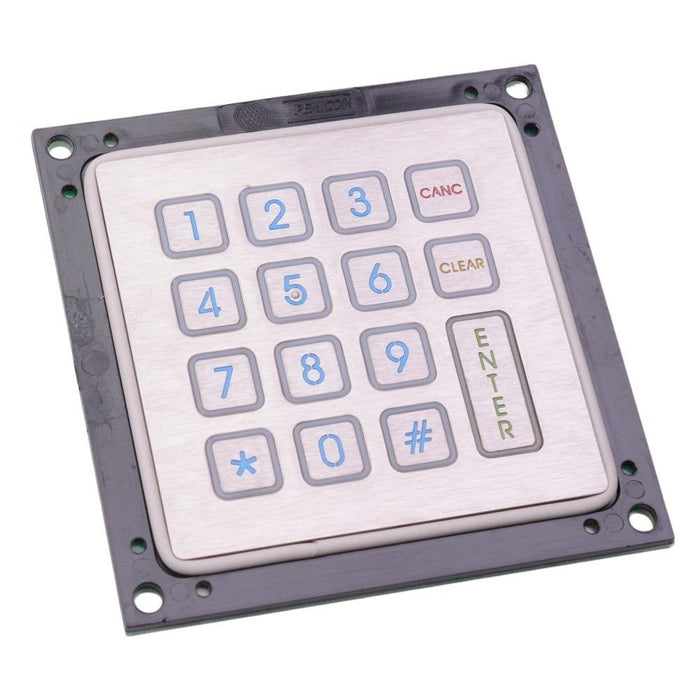

The PQR15LXR12S is a 15 button keypad manufactured by APEM, featuring a stainless steel front and panel sealed to IP65. The keypad is suitable for rear mounting and its rugged construction makes it ideal for harsh environments.

  • 15 keys
  • 12V illumination
  • illumination colour: blue '0-9, *, #', red 'cancel', green 'clear, enter'
  • Sealed to IP65
  • NO contacts
  • 12V LED backlight
  • 316L stainless steel keytop
  • Rating: 50mA at 12VDC
  • 12.5x12.5 square keys
  • Frame size: 103 x 103mm (width x height)
  • Keypad size: 82.5 x 82.5mm (width x height)
  • Panel cut-out: 80.5 x 100.5mm (width x height)
  • Specification
    Actuation Momentary
    Colour Blue, Red, Green
    Contact Configuration NO
    Contact Material Gold Plated
    Contact Rating 50mA 12VDC
    Current Rating 50mA
    Illuminated Yes
    Illumination Colour Blue, Red, Green
    Illumination Voltage 12VDC
    Material Stainless Steel
    MOQ 1
    Mounting Style Panel
    Operating Temperature -20°C to +70°C
    Panel Thickness 2mm
    Product Series PQ
    Protection Level IP65
    Switch Operation Off-(On)
    Terminal Type Connector
    Voltage Rating 12VDC
