PR00410 4-Key Rear Mounting Stainless Steel Keypad IP65 APEM

by APEM
SKU 487564

MPN: PR00410

Availability:
Only 2 left!
Original price £48.98 - Original price £48.98
Original price
£48.98
£48.98 - £48.98
Current price £48.98

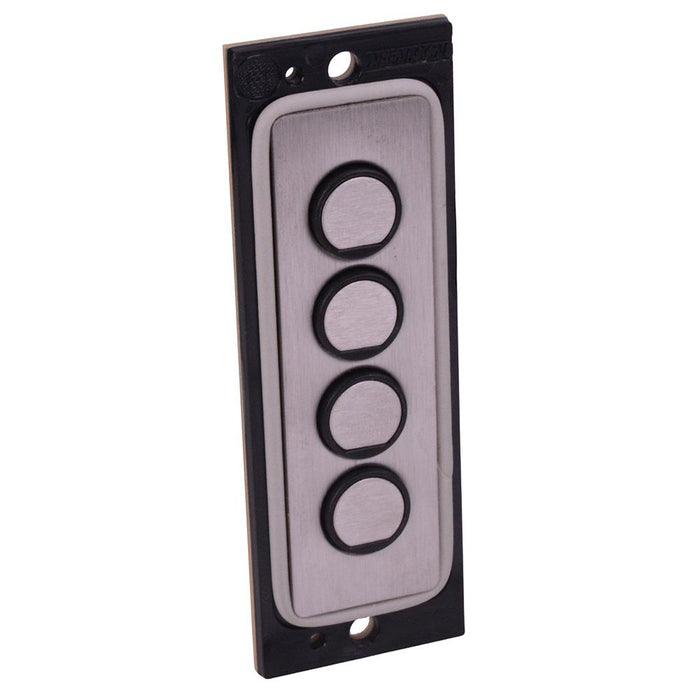

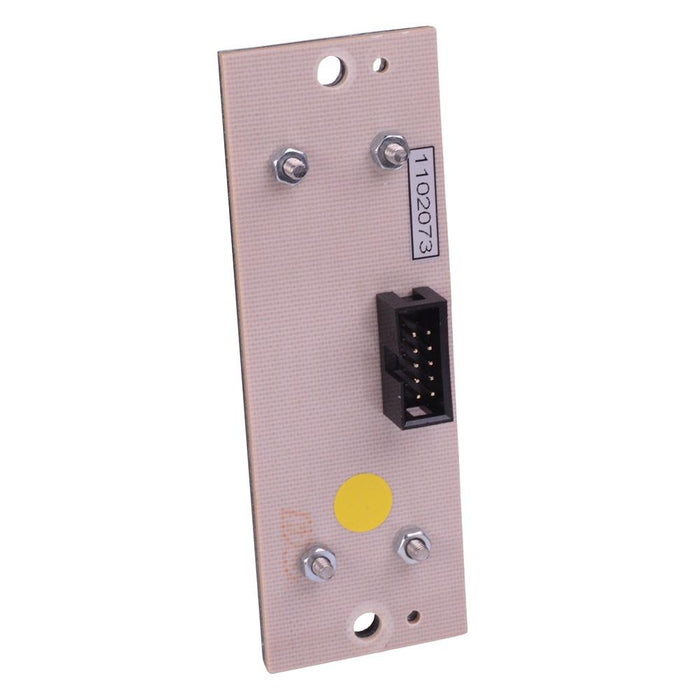

The PR00410 is a 4 button keypad manufactured by APEM, featuring a stainless steel front and panel sealed to IP65. The keypad is suitable for rear mounting and its rugged construction makes it ideal for harsh environments.

  • 4 keys
  • Sealed to IP65
  • NO contacts
  • With frame
  • 316L stainless steel keytop
  • Rating: 50mA at 12VDC
  • 14mm round keys
  • Panel thickness: 1.5-2.0mm
  • Keypad size: 35 x 103mm (width x height)
  • Panel cut-out: 25.5 x 82.5mm (width x height)
  • Specification
    Actuation Momentary
    Back Order Lead Time 10 Days
    Contact Configuration NO
    Contact Material Gold Plated
    Contact Rating 50mA 12VDC
    Current Rating 50mA
    Illuminated No
    Material Stainless Steel
    MOQ 1
    Mounting Style Panel
    Operating Temperature -20°C to +70°C
    Panel Cut Out 25.5 x 82.5mm
    Panel Thickness 1.5-2mm
    Product Series PR
    Protection Level IP65
    Switch Operation Off-(On)
    Terminal Type Connector
    Voltage Rating 12VDC
    Request a quote
