PR01610 16-Key Rear Mounting Stainless Steel Keypad IP65 APEM
by APEM
SKU 487706
MPN: PR01610
Availability:
Only 3 left!
Original price
£104.76
-
Original price
£104.76
Original price
£104.76
£104.76
-
£104.76
Current price
£104.76

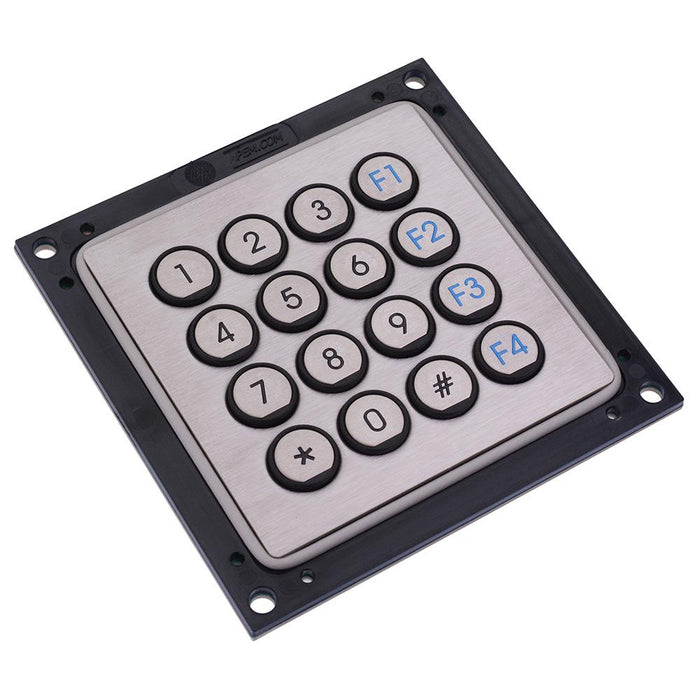

The PR01610 is a 16 button keypad manufactured by APEM, featuring a stainless steel front and panel sealed to IP65. The keypad is suitable for rear mounting and its rugged construction makes it ideal for harsh environments.
16 keys Sealed to IP65 NO contacts With frame 316L stainless steel keytop Rating: 50mA at 12VDC 14mm round keys Panel thickness: 1.5-2.0mm Keypad size: 103 x 103mm (width x height) Panel cut-out: 82.5 x 82.5mm (width x height)
Specification
Actuation | Momentary |
Back Order Lead Time | 10 Days |
Contact Configuration | NO |
Contact Material | Gold Plated |
Contact Rating | 50mA 12VDC |
Current Rating | 50mA |
Illuminated | No |
Material | Stainless Steel |
MOQ | 1 |
Mounting Style | Panel |
Operating Temperature | -20°C to +70°C |
Panel Cut Out | 82.5 x 82.5mm |
Panel Thickness | 1.5-2mm |
Product Series | PR |
Protection Level | IP65 |
Switch Operation | Off-(On) |
Terminal Type | Connector |
Voltage Rating | 12VDC |
