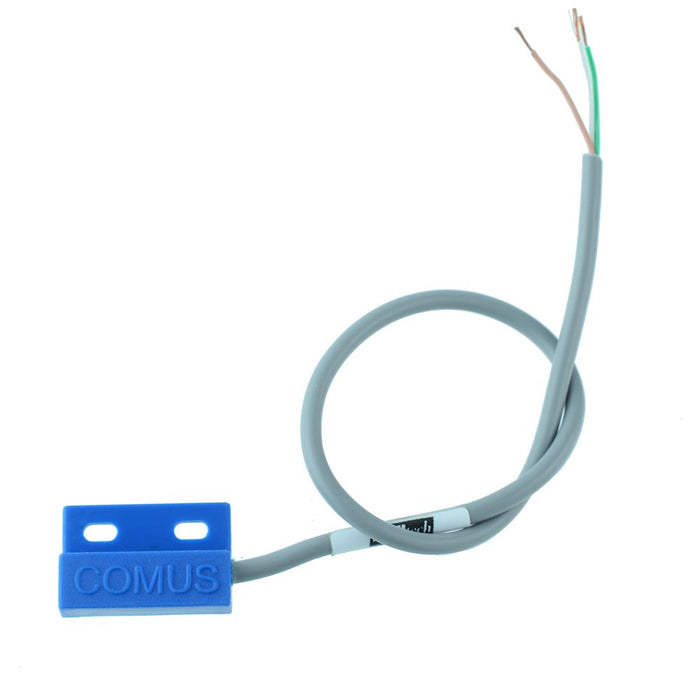

Proximity Reed Switch CO 100V - S1257

by Comus
SKU 552564

MPN: S1257

16 in stock
Original price £7.80 - Original price £7.80
Original price
£7.80 Inc VAT
£7.80 - £7.80
Current price £7.80 Inc VAT
The PSC 175/30 is a rectangular proximity switch featuring changeover contacts, blue nylon 66 housing. Suitable for applications including position and limit sensing, linear actuators, security system switch and door switch.

  • Suggested magnet: PSM
  • Changeover contacts
  • Maximum switching voltage: 100VAC
  • Maximum switching current: 0.5A
  • Maximum switching capacity: 5W/VA
  • Switching distance: 8mm Min
  • 300mm of 3 x round 0.14mm² PVC covered Grey and Insulated Brown / White / Green
  • Specification
    Back order lead time 180 Days
    Carry current 1A
    Contact configuration SPDT
    Material Nylon 66
    Maximum switching capacity 5W/VA
    Maximum switching current 0.5A
    Maximum switching voltage 100VAC
    Operating temperature -20°C to +85°C
