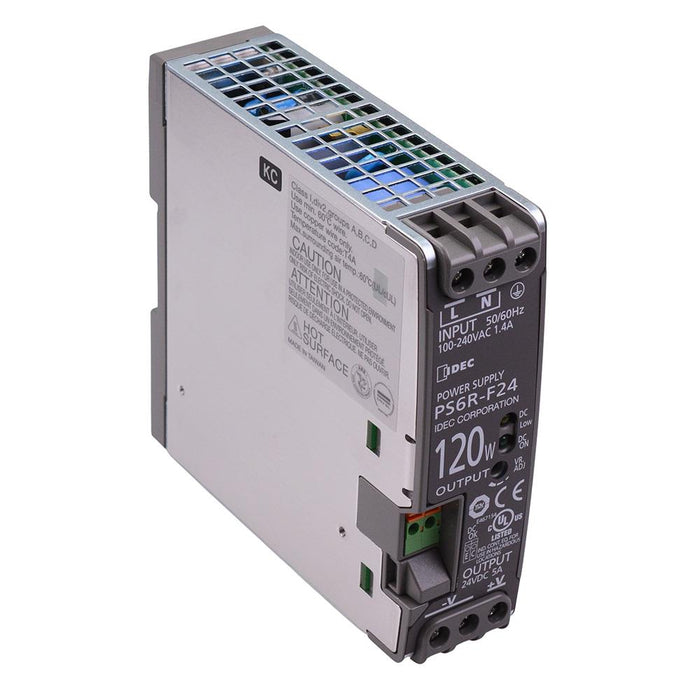

PS6R-F24 IDEC 24VDC 120W DIN Rail Switching Power Supply
by IDEC
SKU 490151
MPN: PS6R-F24
Availability:
Only 1 left!
Original price
£150.05
-
Original price
£150.05
Original price
£150.05
£150.05
£150.05
-
£150.05
Current price
£150.05
The PS6R-F24 is an expandable switching power supply by IDEC, featuring a space-saving design and excellent efficiency reducing operation costs. The power supply is suitable for DIN rail mounting and utilises a finger-safe construction preventing electric shocks. The power supply meets UL, TUV, CE approvals, making it suitable for a wide range of industrial applications.
Input voltage: 100-240VAC Power: 120W Output voltage: 24VDC Output current: 5A Adjustable voltage range: ±10% Operation indicator Voltage low indicator M3.5 screw terminals Dimensions: 125 x 125 x 37mm (height x depth x width)
Specification
| Back Order Lead Time | 120 |
| Input Voltage | 100-240VAC |
| MOQ | 1 |
| Output Connector | M3.5 Screw |
| Output Current | 5A |
| Output Voltage | 24VDC |
| Over Current Protection | 105 to 120% (auto reset) |
| Over Voltage Protection | 120% |
| Power Rating | 120W |
