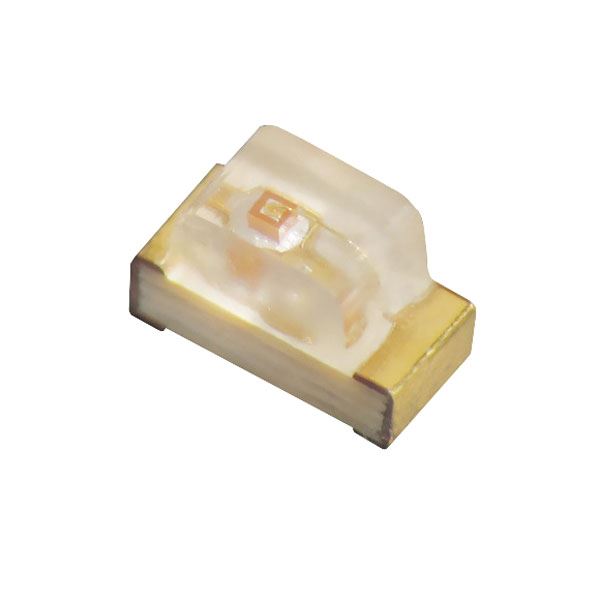

Pure White 1206 SMD LED 850mcd 120°
by Toyo LED
SKU 311509
MPN: TY-Y1206PW1
Availability:
Only 3 left!
Original price
£0.23
-
Original price
£0.23
Original price
£0.23
£0.27
£0.27
-
£0.27
Current price
£0.27
High brightness surface mount LEDs housed in industry standard 1206 package featuring a single chip. The LEDs offer a wide viewing angle and are suitable for a range of backlighting and other lighting applications.
Package: 3.2 x 1.6 x 1.1mm High brightness Water clear package Wide viewing angle Low power consumption
Specification
| Back Order Lead Time | 45 Days |
| Colour | Pure White |
| Colour Temperature | 9000K |
| Forward Current | 30mA |
| Forward Voltage | 2.9V |
| Height | 1.1mm |
| Length | 3.2mm |
| Lens Colour | Clear |
| Luminous Intensity | 850mcd |
| MOQ | 10 |
| Mounting Style | Surface Mount |
| Number of Pins | 2 |
| Operating Temperature | -40°C to +85°C |
| Package | 1206 |
| Packaging | Cut-Tape |
| Power Dissipation | 135mW |
| Viewing Angle | 120° |
| Width | 1.6mm |
