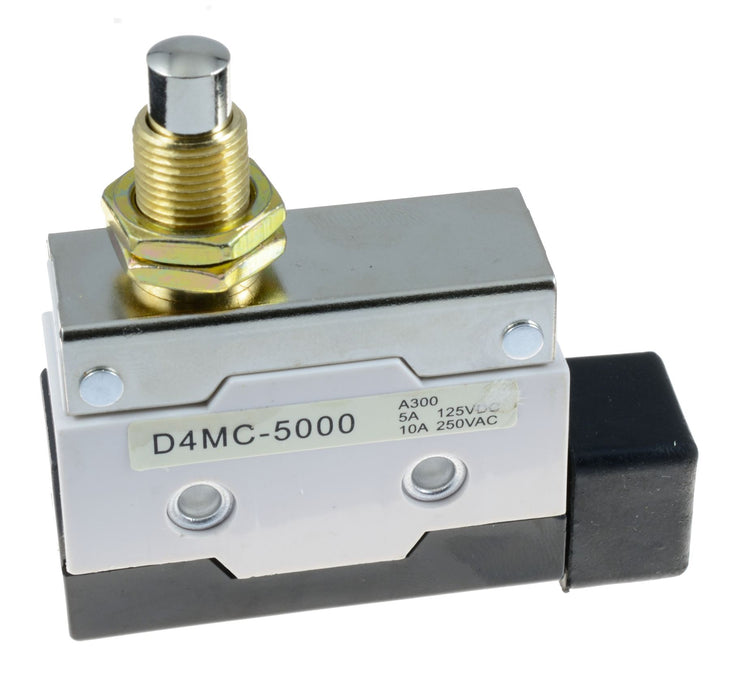

Push Button Plunger Limit Switch SPDT 250VAC 10A
SKU 123041
MPN: 123041
Availability:
16 in stock
Original price
£3.53
-
Original price
£3.53
Original price
£3.53
£3.53
£3.53
-
£3.53
Current price
£3.53
Quality compact limit switch with great mechanical strength and efficient coil spring mechanism for long life. The switch has excellent shock absorption and is suitable for a wide range of applications for limit protection.
SPDT contacts Push button actuator 2*mounting holes with 25.4mm pitch Screw terminals Great mechanical strength Compact and lightweight housing Large overtravel 12mm panel cut-out diameter Dimensions: 41 x 70 x 20mm (Height x Length x Width)
Specification
| Back Order Lead Time | 45 |
| Contact Configuration | SPDT |
| Contact Rating | 10A 250VAC |
| Current Rating | 10A |
| MOQ | 1 |
| Number of Positions | 2 |
| Operating Temperature | 105°C Max |
| Terminal Type | Screw |
| Voltage Rating | 250VAC |
