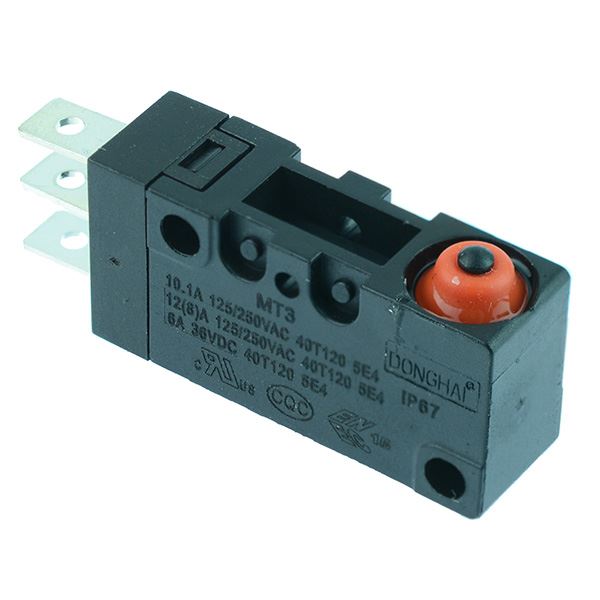

Push Button Waterproof Microswitch SPDT 10A IP67
SKU 481705
MPN: 481705
Availability:
38 in stock
Original price
£2.04
-
Original price
£2.04
Original price
£2.04
£2.31
£2.31
-
£2.31
Current price
£2.31
Microswitch featuring a push button actuator, housed in a waterproof compact package capable of switching up to 10A. The switch features quick connect terminals and is suitable for domestic and industrial applications.
Push button actuator Rating: 10A 250VAC NO / NC contacts 4.8mm quick connect terminals Operating force: 300gf max Body dimensions: 33 x 10.3 x 15.8mm (Length x Width x Height)
Specification
| Back Order Lead Time | 45 Days |
| Contact Configuration | SPDT |
| Contact Rating | 10A 250VAC |
| Current Rating | 10A |
| Electrical Life | 100,000 Cycles |
| Number of Positions | 2 |
| Operating Force | 300gf Max |
| Protection Level | IP67 |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
