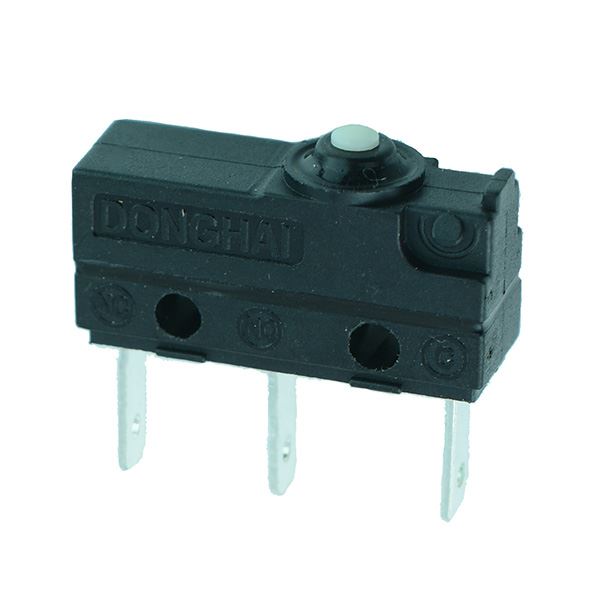

Push Button Waterproof Microswitch SPDT 3A

Push Button Waterproof Microswitch SPDT 3A

by Switch Electronics
SKU 481701

MPN: 481701

Availability:
262 in stock
£1.35 - £1.35
£1.35
£1.35 - £1.35
£1.35
Miniature microswitch featuring a push button actuator, housed in a waterproof compact package capable of switching up to 3A. The switch features quick connect terminals and is suitable for domestic and industrial applications.

  • Push button actuator
  • Rating: 3A 250VAC / 48VDC
  • NO / NC contacts
  • 2.8mm quick connect terminals
  • Operating force: 300gf max
  • Release force: 70gf min
  • Pre-travel: 1.2mm max
  • Over-travel 0.6mm min
  • Differential travel: 0.2mm max
  • Body dimensions: 19.9 x 6.4 x 9.3mm (Length x Width x Height)
    • Download Product Data Sheet PDF
    Specification
    Back Order Lead Time 45 Days
    Contact Configuration SPDT
    Contact Rating 3A 250VAC
    Current Rating 3A
    Electrical Life 100,000 Cycles
    Number of Positions 2
    Operating Force 300gf Max
    Protection Level IP67
    Release Force 70gf Min
    Terminal Type Quick Connect
    Voltage Rating 250VAC
    Request a quote

    Customer Reviews

    Based on 2 reviews
    100%
    (2)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    P
    P.J.
    Excellent miniture switch

    Used to replace the miniture switch ina truma motorhome tap. The lead outs face the wrong way but this was easily rectified by cutting them off and soldering on the right way. Nice little switch that comfortably fitted into the recepticle for the Truma tap.

    P
    Paul

    First class item and great company to deal with. First class service
