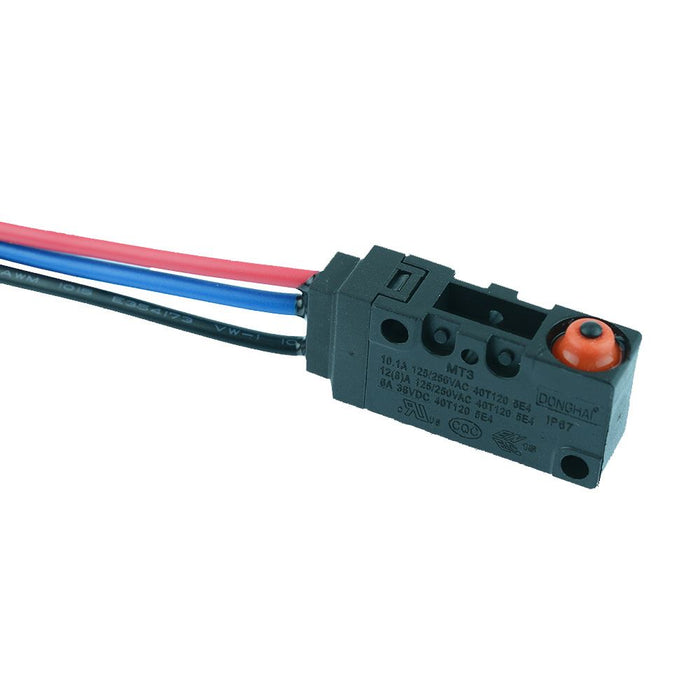

Push Button Waterproof Prewired Microswitch SPDT 10A IP67
SKU 481709
MPN: 481709
Availability:
14 in stock
Original price
£3.46
-
Original price
£3.46
Original price
£3.46
Inc VAT
£3.46
-
£3.46
Current price
£3.46
Inc VAT
Microswitch featuring a push button actuator, housed in a waterproof compact package capable of switching up to 10A. The switch features flying leads and is suitable for domestic and industrial applications.
Push button actuator Rating: 10A 250VAC NO / NC contacts 300mm 20awg flying leads Operating force: 300gf max Body dimensions: 33 x 10.3 x 15.8mm (Length x Width x Height)
Specification
Back Order Lead Time | 45 Days |
Contact Configuration | SPDT |
Contact Rating | 10A 250VAC |
Current Rating | 10A |
Electrical Life | 100,000 Cycles |
Number of Positions | 2 |
Operating Force | 300gf Max |
Protection Level | IP67 |
Terminal Type | Leads |
Voltage Rating | 250VAC |
