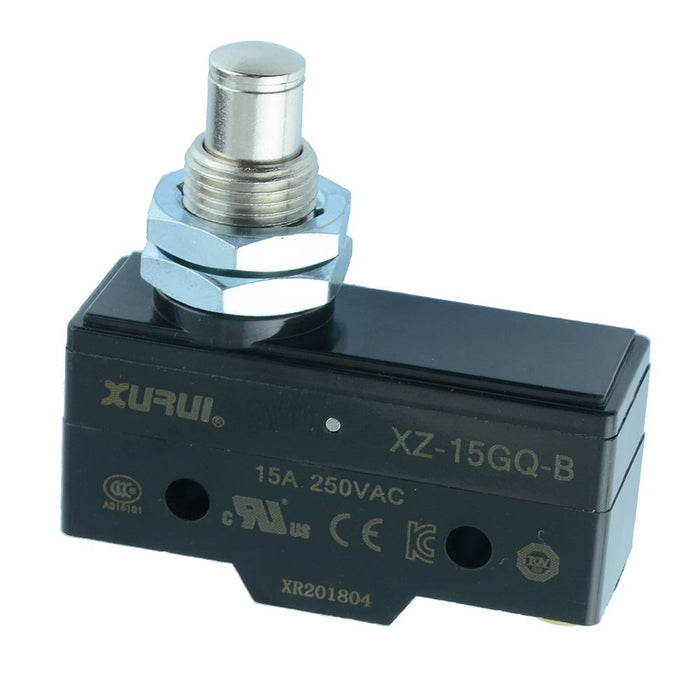

Push Button Z Series Limit Switch SPDT 15A 250VAC
SKU 480406
MPN: 480406
Availability:
Out of stock
Sold out
Original price
£4.56
-
Original price
£4.56
Original price
£4.56
Inc VAT
£4.56
-
£4.56
Current price
£4.56
Inc VAT
Z series heavy duty microswitch featuring a push button actuator and SPDT contacts. The switch is connected using the screw terminals and is suitable for a wide range of applications requiring a reliable microswitch.
Push button actuator Rating: 15A 250VAC NO / NC contacts Screw terminals 1,000,000 operation life Operating force: 350-450g Release force: 114g
Specification
| Back order lead time | 120 Days |
| Contact configuration | SPDT |
| Contact rating | 15A 250VAC |
| Current rating | 15A |
| Electrical life | 100,000 Cycles |
| Number of positions | 2 |
| Operating force | 350-450g |
| Operating temperature | -25°C to +80°C |
| Protection level | IP40 |
| Release force | 114g |
| Terminal type | Screw |
| Voltage rating | 250VAC |
