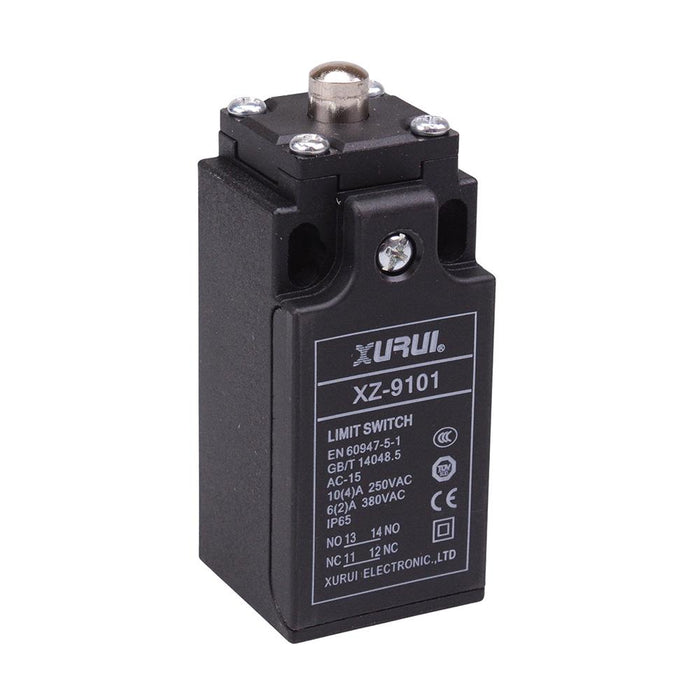

Push Plunger Industrial Limit Switch IP65 10A 250V

by Xurui
SKU 489601

MPN: XZ-9101

Availability:
9 in stock
Original price £5.60 - Original price £5.60
Original price
£5.60
£5.60 - £5.60
Current price £5.60
Industrial limit switch featuring a push button plunger and 2NO/2NC contacts. The switch is housed in a lightweight plastic housing and is suitable for a wide range of industrial, automation and mechanical applications.

  • Rating: 10(4)A/250VAC, 6(2)A 380VAC
  • Push button plunger
  • IP65 protection rating
  • 2NO/NC contacts
  • Enclosed screw terminals
  • Operating force max: 700g
  • Release force min: 180g
  • Dimensions: 73 x 30.5 x 30.0mm (height x width x depth)
  • Specification
    Back Order Lead Time 120 Days
    Contact Configuration DPDT
    Contact Rating 10A 250VAC
    Current Rating 10A
    Electrical Life 100,000 Cycles
    MOQ 1
    Number of Positions 2
    Operating Force 700g Max
    Operating Temperature -10°C to +70°C
    Protection Level IP65
    Release Force 180g Min
    Terminal Type Screw
    Voltage Rating 250VAC
