Q10F5ABXXB02E Blue 10mm 3.3VDC LED Panel Indicator IP67 APEM
by APEM
SKU 492533
MPN: Q10F5ABXXB02E
Availability:
84 in stock
Original price
£12.78
-
Original price
£12.78
Original price
£12.78
£12.78
-
£12.78
Current price
£12.78

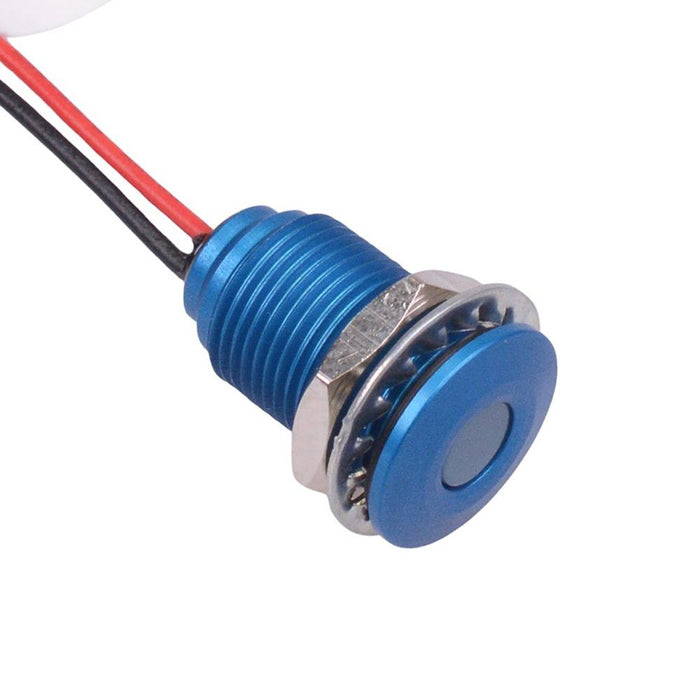

The Q10F5ABXXB02E is a blue panel mount LED indicator from the APEM Q10 series, featuring a 10mm cut-out and sealed to IP67. The indicator features a flush blue anodized aluminium bezel and rear epoxy sealed 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: blue Panel cut-out: 10mm Voltage rating: 3.3VDC Current rating: 20mA Panel thickness: 7mm max Brightness: 150mcd Operating voltage: 1.8 to 3.3VDC Bezel material: blue anodized aluminium Protection level: IP67 Terminal type: rear epoxy 200mm wires Length: 17.15mm Diameter: 12.7mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Blue |
| Diameter | 12.7mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 17.15mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 10mm |
| Panel Thickness | 7mm Max |
| Protection Level | IP67 |
| Voltage Rating | 3.3VDC |
