Q10F5ACXXR24E Red 10mm 24VDC LED Panel Indicator IP67 APEM
by APEM
SKU 492542
MPN: Q10F5ACXXR24E
Availability:
108 in stock
Original price
£10.94
-
Original price
£10.94
Original price
£10.94
£10.94
£10.94
-
£10.94
Current price
£10.94

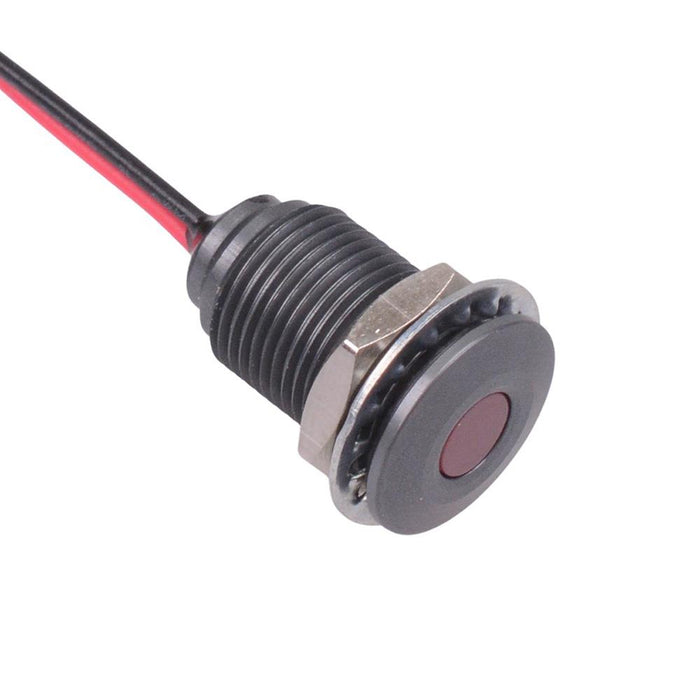

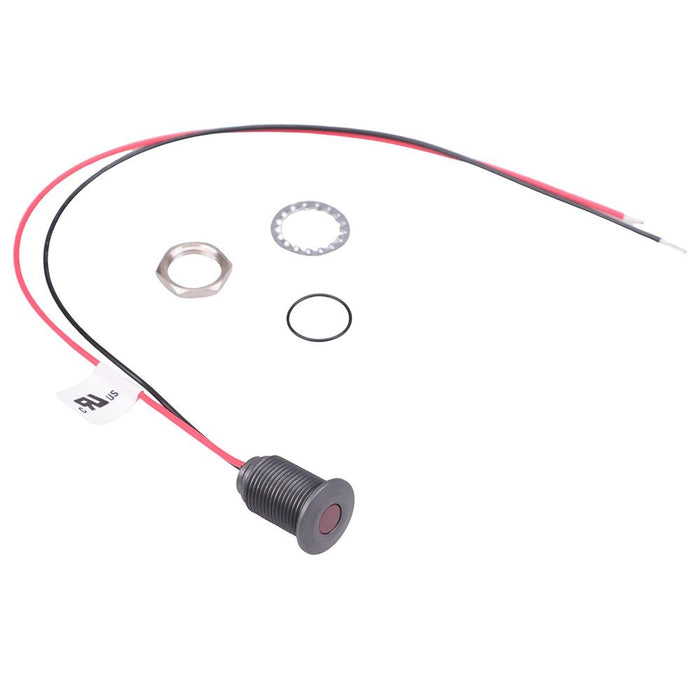

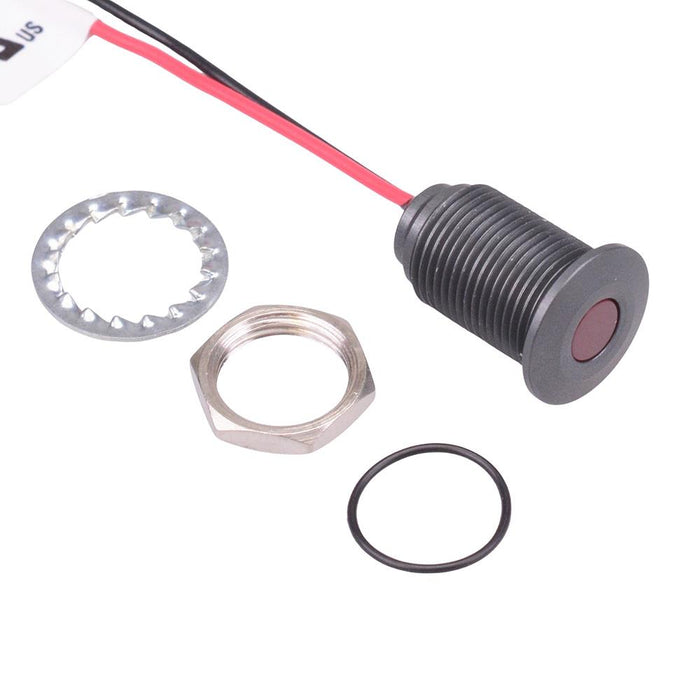

The Q10F5ACXXR24E is a red panel mount LED indicator from the APEM Q10 series, featuring a 10mm cut-out and sealed to IP67. The indicator features a flush grey anodized aluminium bezel and rear epoxy sealed 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: red Panel cut-out: 10mm Voltage rating: 24VDC Current rating: 20mA Panel thickness: 7mm max Brightness: 6mcd Operating voltage: 21.6 to 26.4VDC Bezel material: grey anodized aluminium Protection level: IP67 Terminal type: rear epoxy 200mm wires Length: 17.15mm Diameter: 12.7mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Diameter | 12.7mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 17.15mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 10mm |
| Panel Thickness | 7mm Max |
| Protection Level | IP67 |
| Voltage Rating | 24VDC |
