Q10F5AGXXHG12E Hyper Bright Green 10mm 12VDC LED Panel Indicator IP67 APEM
by APEM
SKU 492547
MPN: Q10F5AGXXHG12E
Availability:
110 in stock
Original price
£13.10
-
Original price
£13.10
Original price
£13.10
£13.10
£13.10
-
£13.10
Current price
£13.10

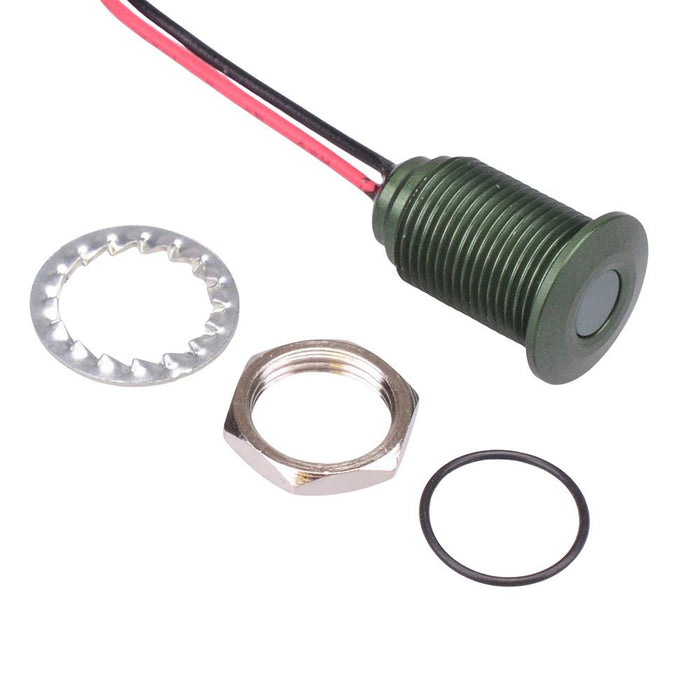

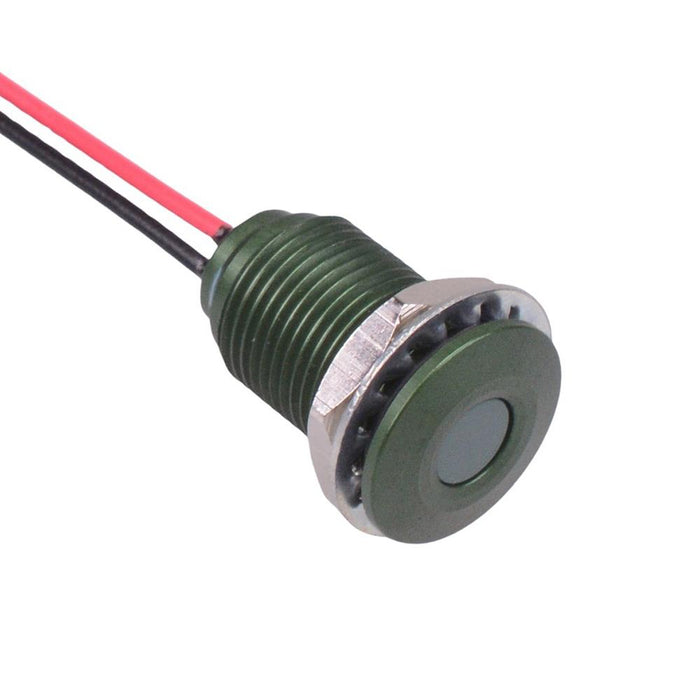

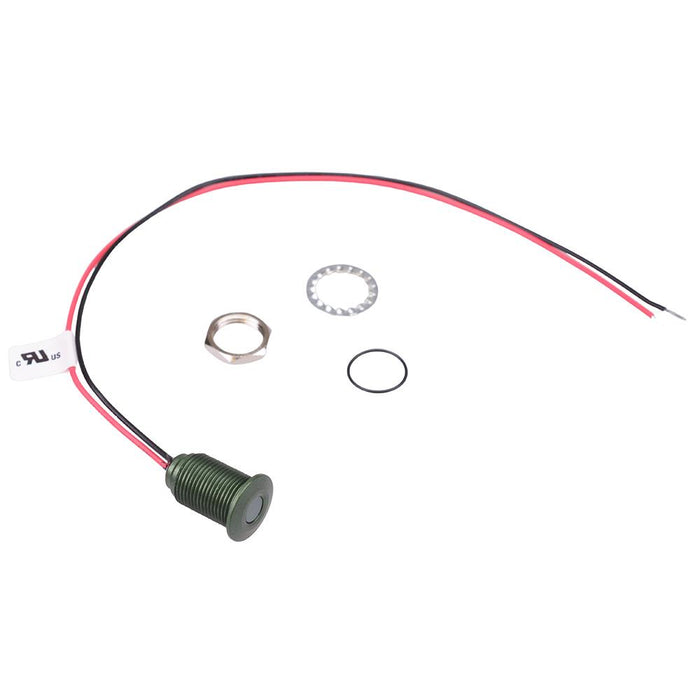

The Q10F5AGXXHG12E is a hyper bright green panel mount LED indicator from the APEM Q10 series, featuring a 10mm cut-out and sealed to IP67. The indicator features a flush green anodized aluminium bezel and rear epoxy sealed 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: green Panel cut-out: 10mm Voltage rating: 12VDC Current rating: 20mA Panel thickness: 7mm max Brightness: 300mcd Operating voltage: 10.8 to 13.2VDC Bezel material: green anodized aluminium Protection level: IP67 Terminal type: rear epoxy 200mm wires Length: 17.15mm Diameter: 12.7mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Green |
| Diameter | 12.7mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 17.15mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 10mm |
| Panel Thickness | 7mm Max |
| Protection Level | IP67 |
| Voltage Rating | 12VDC |
