Q10F5ARXXSR02E Super Bright Red 10mm 2.2VDC LED Panel Indicator IP67 APEM
by APEM
SKU 492566
MPN: Q10F5ARXXSR02E
Availability:
110 in stock
Original price
£11.33
-
Original price
£11.33
Original price
£11.33
£11.33
£11.33
-
£11.33
Current price
£11.33

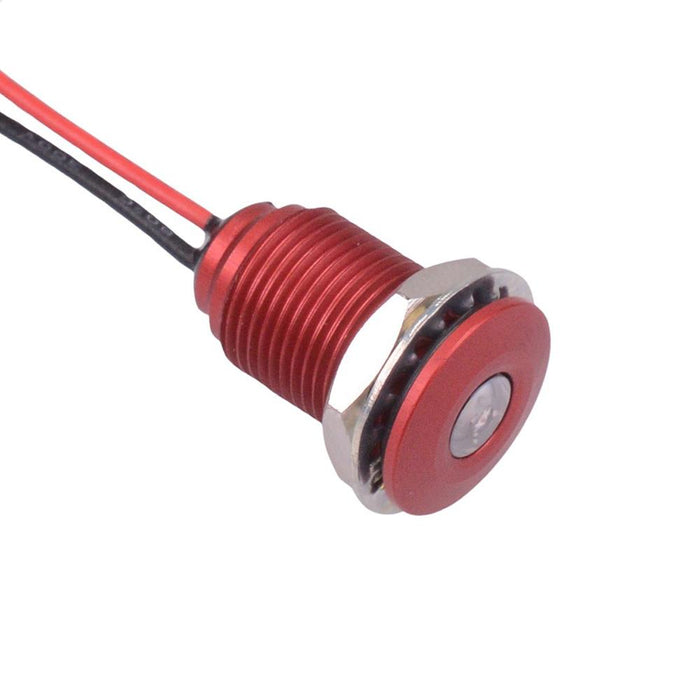

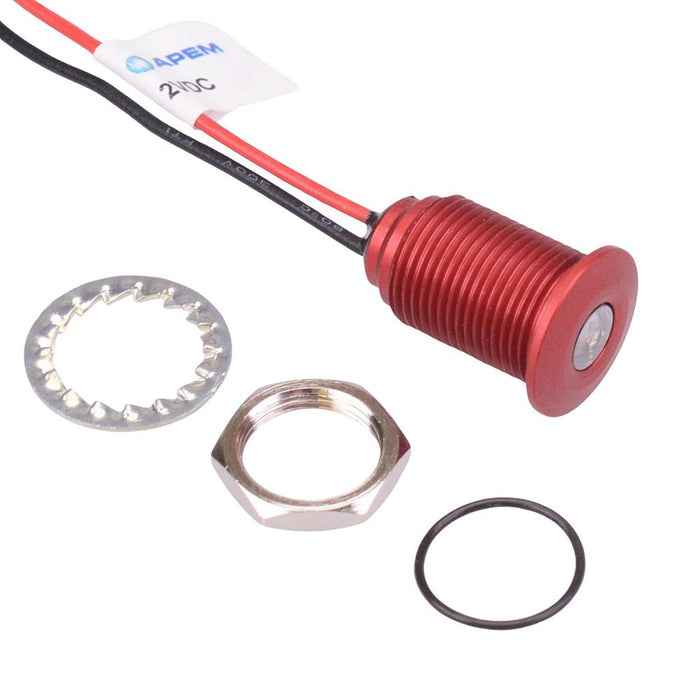

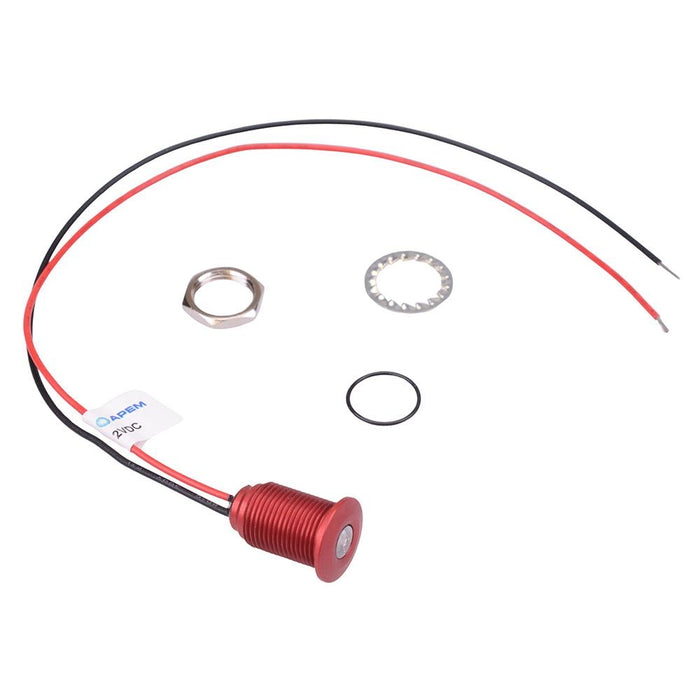

The Q10F5ARXXSR02E is a super bright red panel mount LED indicator from the APEM Q10 series, featuring a 10mm cut-out and sealed to IP67. The indicator features a flush red anodized aluminium bezel and rear epoxy sealed 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: red Panel cut-out: 10mm Voltage rating: 2.2VDC Current rating: 20mA Panel thickness: 7mm max Brightness: 1300mcd Operating voltage: 1.8 to 3.3VDC Bezel material: red anodized aluminium Protection level: IP67 Terminal type: rear epoxy 200mm wires Length: 17.15mm Diameter: 12.7mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Diameter | 12.7mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 17.15mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 10mm |
| Panel Thickness | 7mm Max |
| Protection Level | IP67 |
| Voltage Rating | 2.2VDC |
