Q12P1BXXY12 Yellow 12mm 12VDC LED Panel Indicator APEM
by APEM
SKU 492577
MPN: Q12P1BXXY12
Availability:
18 in stock
Original price
£8.23
-
Original price
£8.23
Original price
£8.23
£8.64
£8.64
-
£8.64
Current price
£8.64

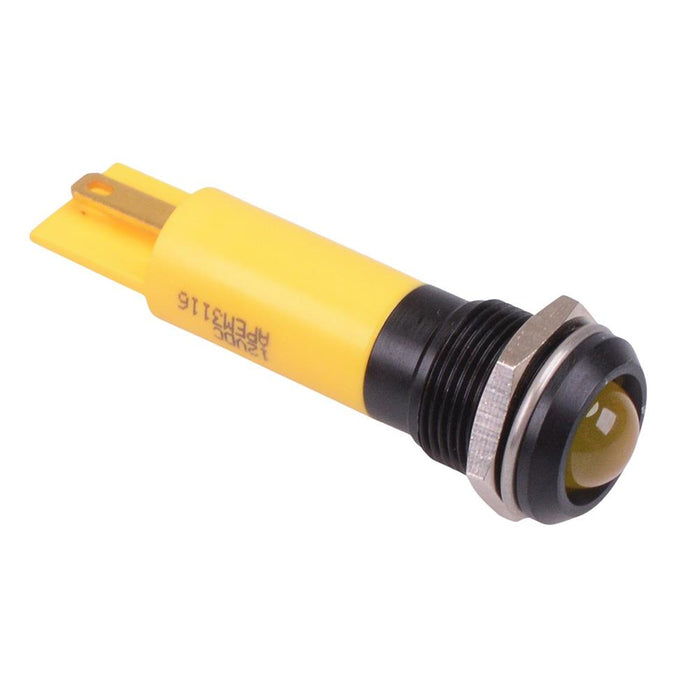

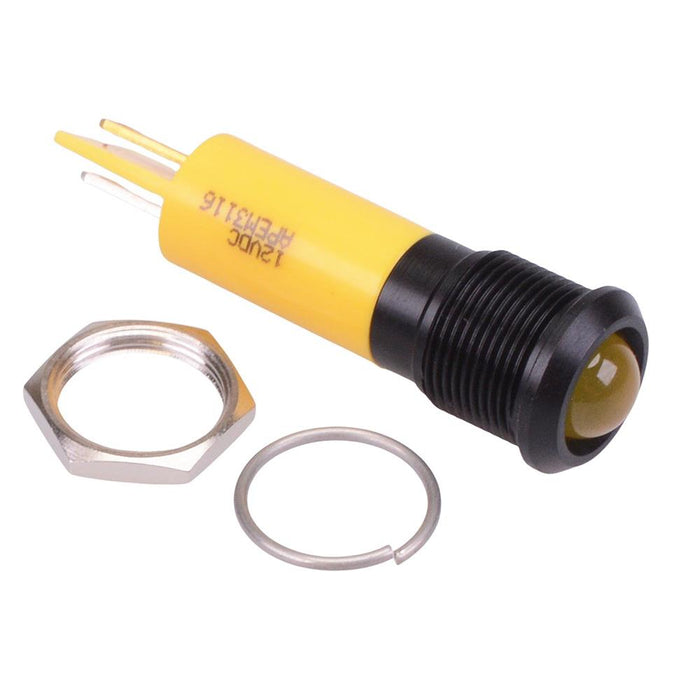

The Q12P1BXXY12 is a hyper bright yellow panel mount LED indicator from the APEM Q12 series, featuring a 12mm cut-out. The indicator features a prominent black plated brass bezel and 2.8mm quick connect terminals. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: yellow Panel cut-out: 12mm Voltage rating: 12VDC Current rating: 20mA Panel thickness: 7mm max Brightness: 50mcd Operating voltage: 10.8 to 13.2VDC Bezel material: black plated brass Terminal type: quick connect / solder 2.8 x 0.8mm Length: 36.25mm Diameter: 13.5mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Yellow |
| Diameter | 13.5mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 36.25mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 12mm |
| Panel Thickness | 7mm Max |
| Voltage Rating | 12VDC |
