Q14F1BYYRG02E Red / Green Flush 14mm 2.1VDC LED Panel Indicator IP67 APEM
by APEM
SKU 492581
MPN: Q14F1BYYRG02E
Availability:
16 in stock
Original price
£11.16
-
Original price
£11.16
Original price
£11.16
£11.16
£11.16
-
£11.16
Current price
£11.16

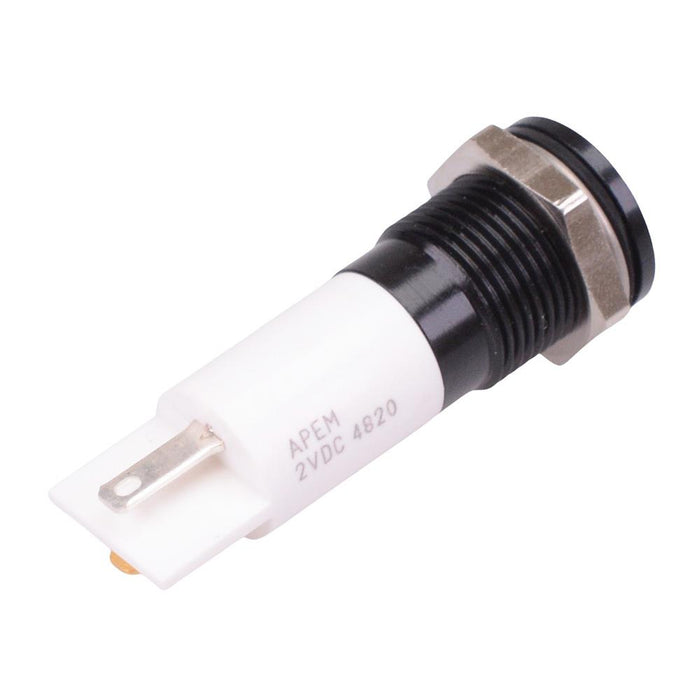

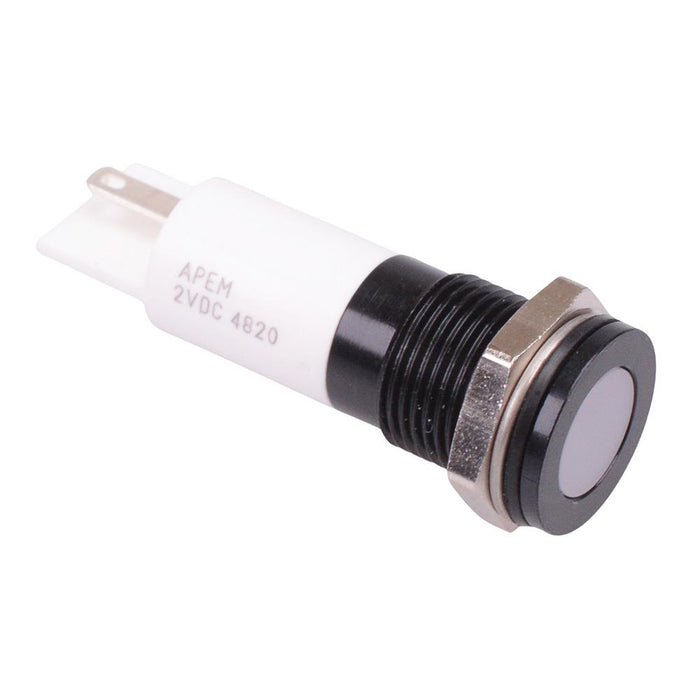

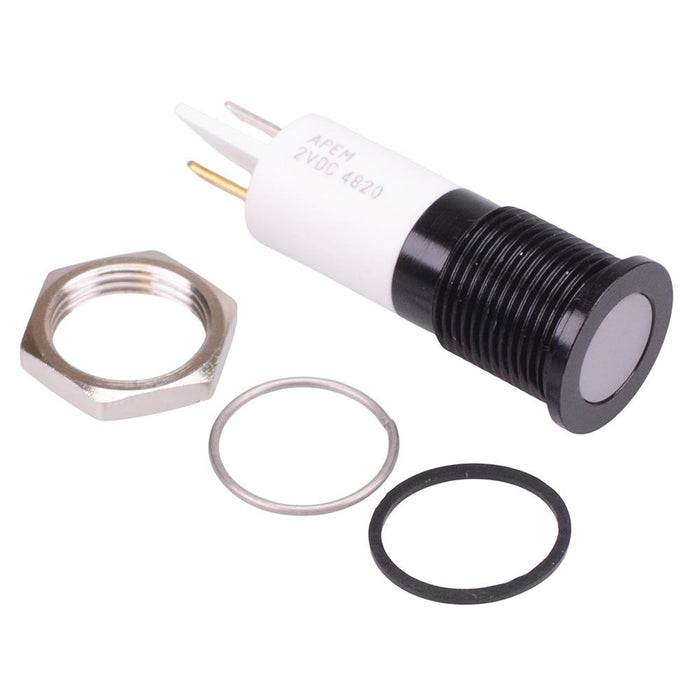

The Q14F1BYYRG02E is a bi-colour red green panel mount LED indicator from the APEM Q14 series, featuring a 14mm cut-out and sealed to IP67. The indicator features a flush black plated brass bezel and 2.8mm quick connect terminals. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: red / green Panel cut-out: 14mm Voltage rating: 2.1VDC Current rating: 20mA Panel thickness: 11mm max Brightness: red 10mcd, green 5mcd Operating voltage: 1.8 to 3.3VDC Bezel material: black plated brass Protection level: IP67 Terminal type: quick connect / solder 2.8 x 0.8mm Length: 35.6mm Diameter: 16mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red / Green |
| Diameter | 16mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 35.6mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 14mm |
| Panel Thickness | 11mm Max |
| Protection Level | IP67 |
| Voltage Rating | 2.1VDC |
